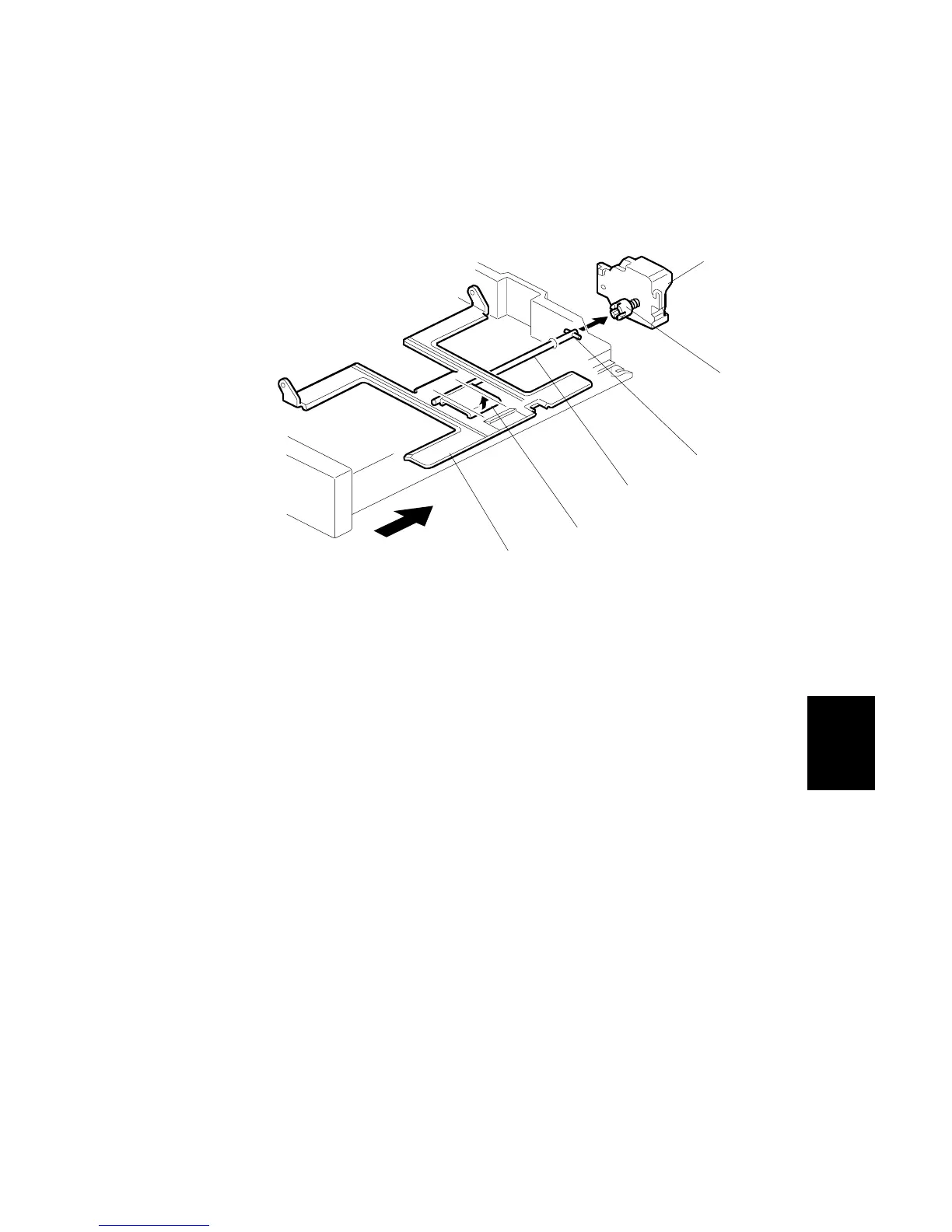

6.13.3 TRAY AND PAPER LIFT MECHANISM – TRAY 2,3
Bottom Plate Lift
Tray lift operates in this order:
[A]: Tray lift motor switches on
[B]: Coupling rotates
[C]: Pin locks coupling at shaft
[D]: Shaft rotates
[E]: Lift arm raised by the rotation of the shaft
[F]: Bottom plate pushed up by lift arm
NOTE: The universal trays (Tray 2, Tray 3) each have a paper near end sensor
inside the lift motor assembly. The sensor measures the angle of the lift
shaft. There are four possible readings from this sensor, to indicate four
levels of remaining paper.
