Toshiba e-STUDIO4500c Service Manual

August, 2006 SCANNER UNIT
3-31

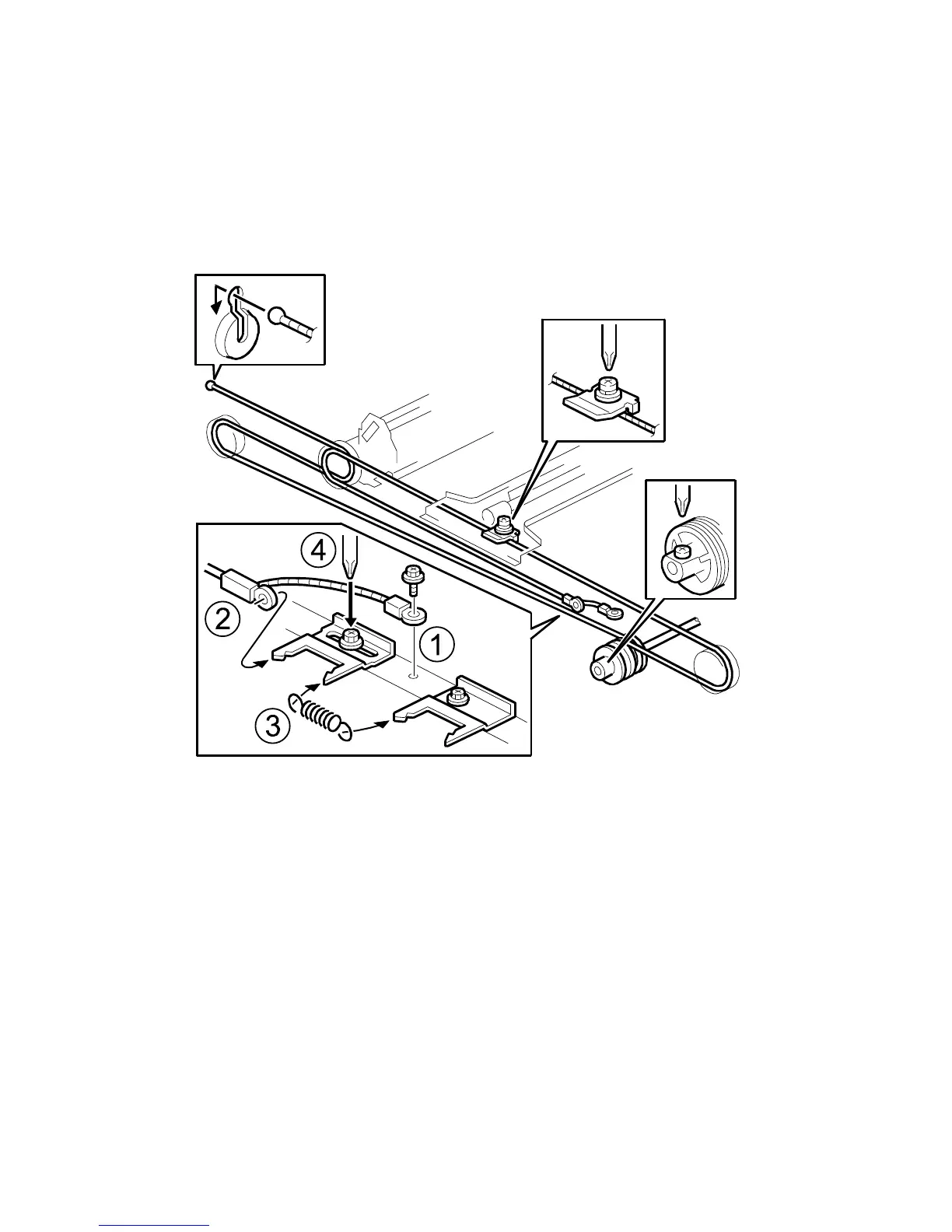

3.3.7 SCANNER WIRE
Scanner Wire Removal
1. Remove wire ground
 ( x1)
2. Disconnect the head of wire
 from tension bracket 1.
3. Remove spring
.
4. Loosen the screw
 of tension bracket 1.
5. Disconnect the end of wire at
.
6. Remove lock bracket  of the 1st scanner ( x1).
7. Disconnect the wire from the pulley
 ( x1).
8. Remove the wire from the scanner.
B132R137.WMF



