August, 2006 PAPER FEED (TRAYS 2, 3)

3-123

3.12.2 FEED UNIT

Remove:

• Front door (3.2.4)

• If the LCT is connected, disconnect it and pull it away from the machine.

• LCT entrance guide cover and right lower cover

Pull out all three trays (do not remove).

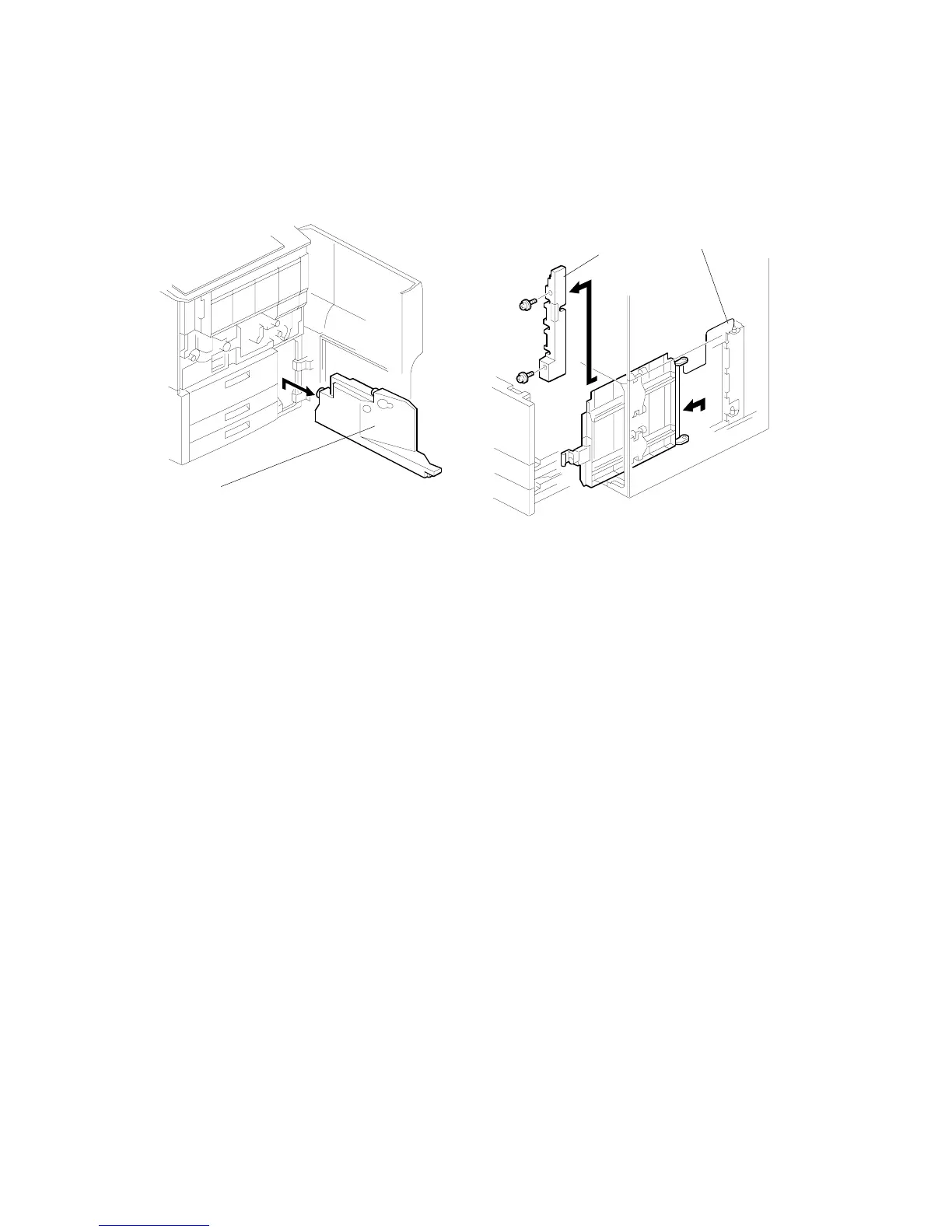

[A]: Toner collection bottle

[B]: Vertical transport guide

[C]: Inner cover ( x 2)

NOTE: When re-installing the vertical transport guide, remove the lower right cover

then insert from it.

B132R602A.WMF

B132R603A.WMF

[A]

[C]

[B]
