MOTORS August, 2006
3-152
3.16.6 ITB DRIVE MOTOR
• Remove rear covers (3.2.6)
• Open and lock the controller box (3.2.11)
• Remove the Transfer board assembly (3.14.10)

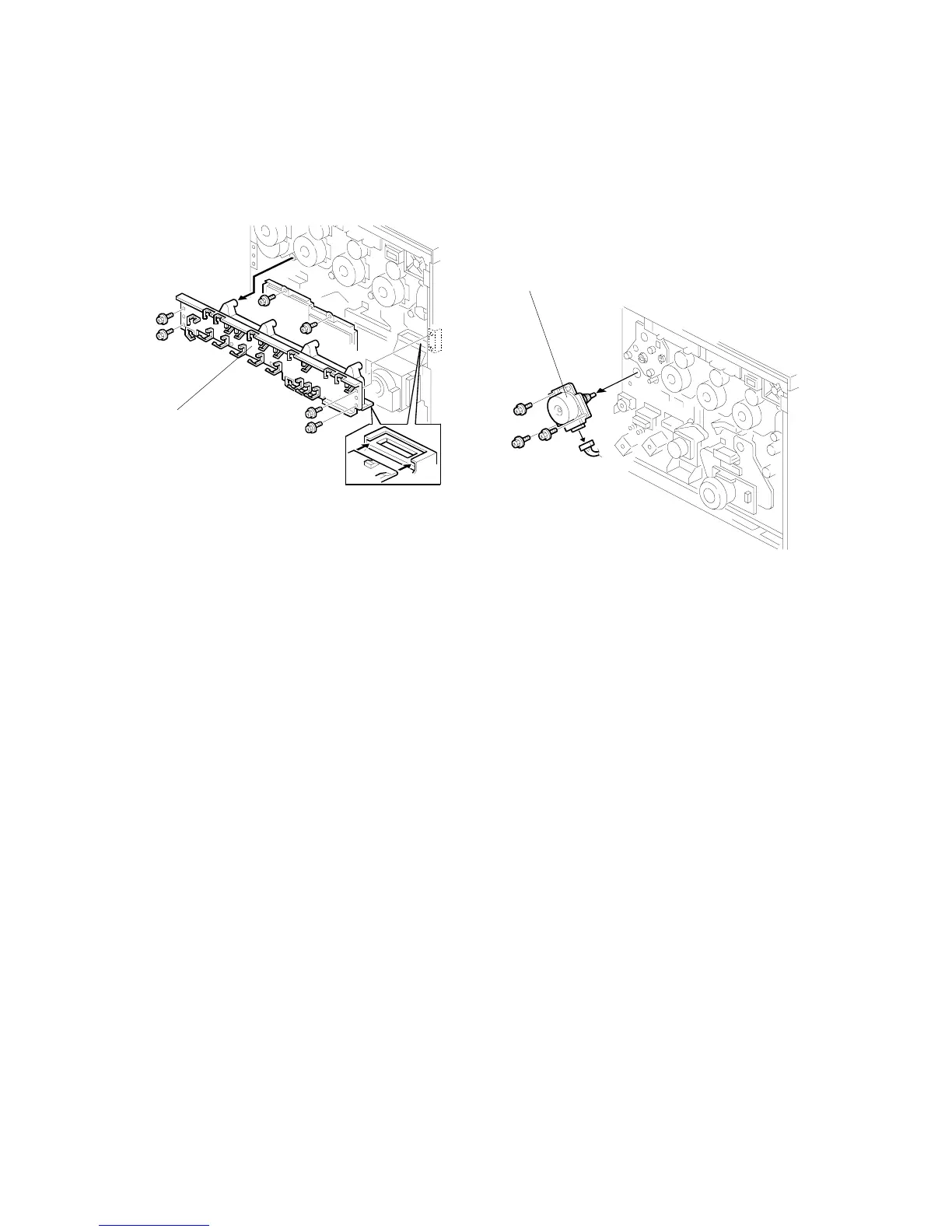

[A]: Support stay ( x21, x1, x4)
[B]: ITB drive motor ( x3, x1)
B132R719A.WMF
B132R725.WMF
[A]
[B]
