Toshiba e-STUDIO4500c Service Manual

SCANNER UNIT August, 2006
3-28

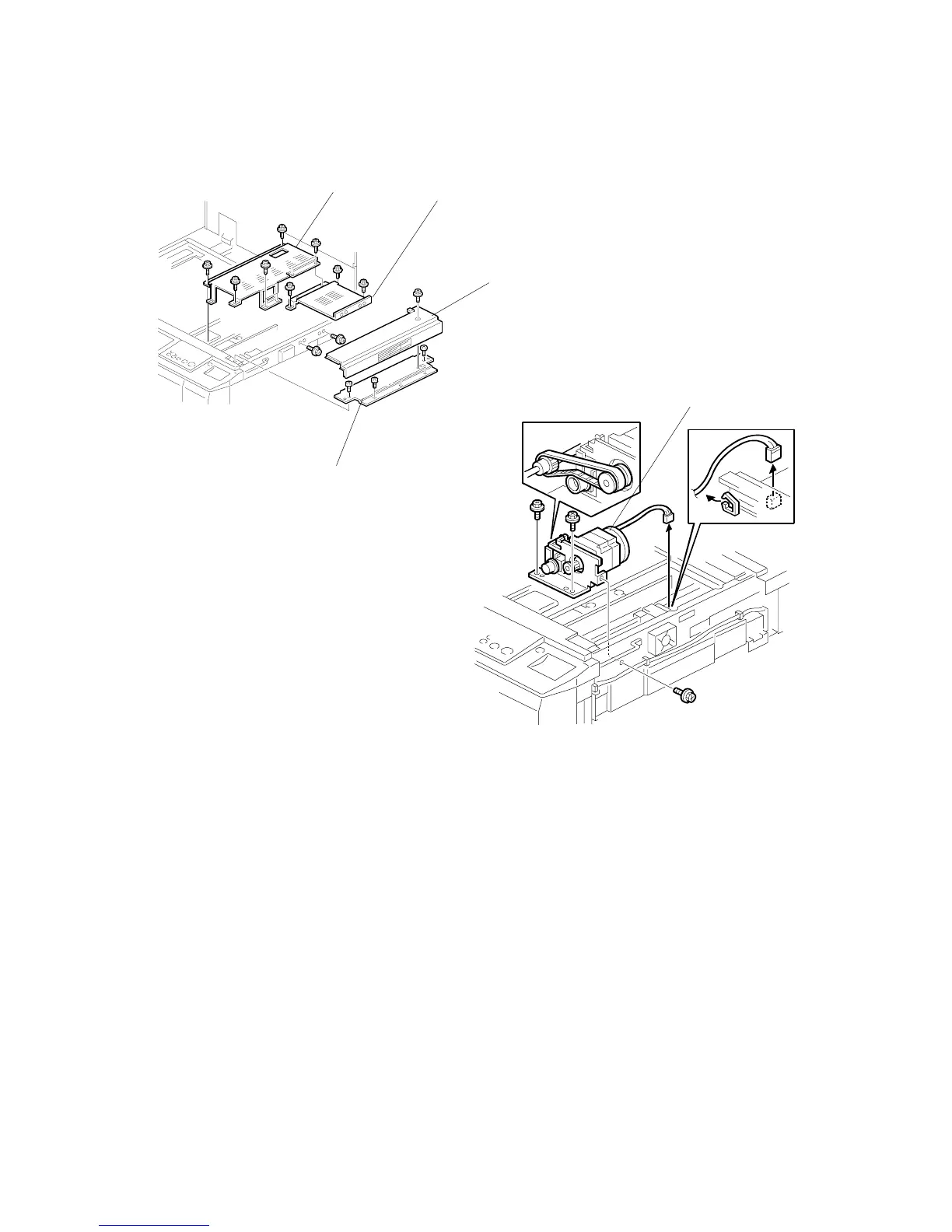

3.3.4 SCANNER MOTOR
Remove:
• Exposure glass (3.3.1)
[A]: Lens cover ( x4)
[B]: Right lens cover ( x3)
[C]: Top right cover ( x1)
[D]: Bracket ( x5)
[E]: Scanner motor (Timing belt x1,  x1,  x1,  x3)
B132R132A.WMF
B132R133.WMF
[E]
[A]
[B]
[C]
[D]
