LOWER TRAY (B700 ONLY) August 2006
B700-42
2.7 LOWER TRAY (B700 ONLY)

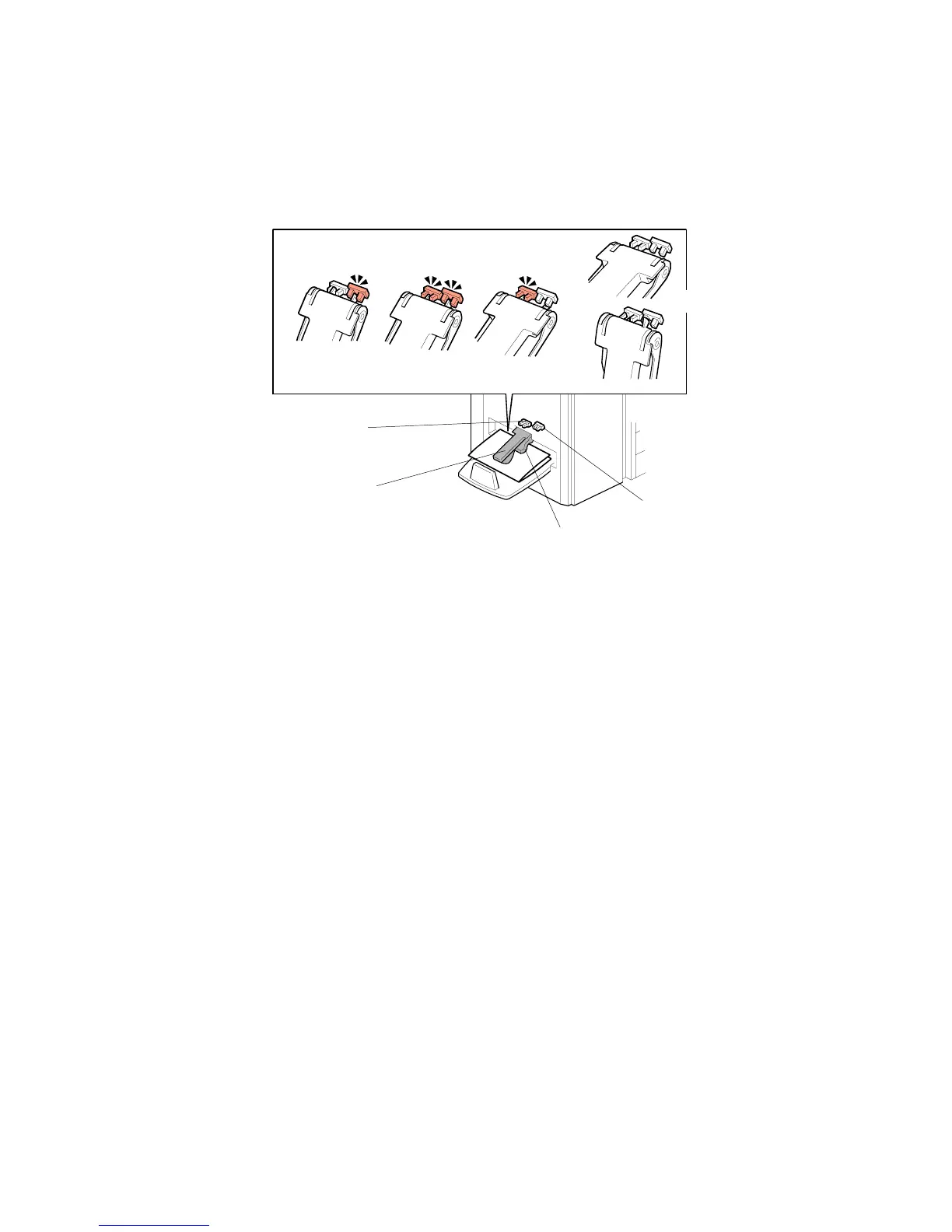

The lower tray sensor actuator arm [A] rests on the top of the stack of stapled
booklets as they are output to the lower tray. A flap depressor [B] keeps the open
ends of the booklets down.
The front lower tray full sensor (S34) [C] and rear lower tray full sensor (S33) [D]
detect when the lower tray is full of booklets.
Important
• The front lower tray full sensor is mounted higher than the rear lower tray full
sensor.
• The lower tray is stationary. When it becomes full, the stapling and folding job
stops until booklets are removed from the tray.
• If the lower tray is not installed (this is detected if the front and rear sensors
remain OFF), the machine will not operate in the booklet staple and fold mode.
When booklet mode is selected, the tray full message appears on the operation
panel.
The combinations of the two actuators and two sensors as the actuator arm rises
determines the number of booklets that the lower tray can hold before the job stops.
