August, 2006 PAPER TRANSFER UNIT
3-69
3.7.5 LUBRICANT BAR
Remove:
• Paper transfer unit (3.7.3)

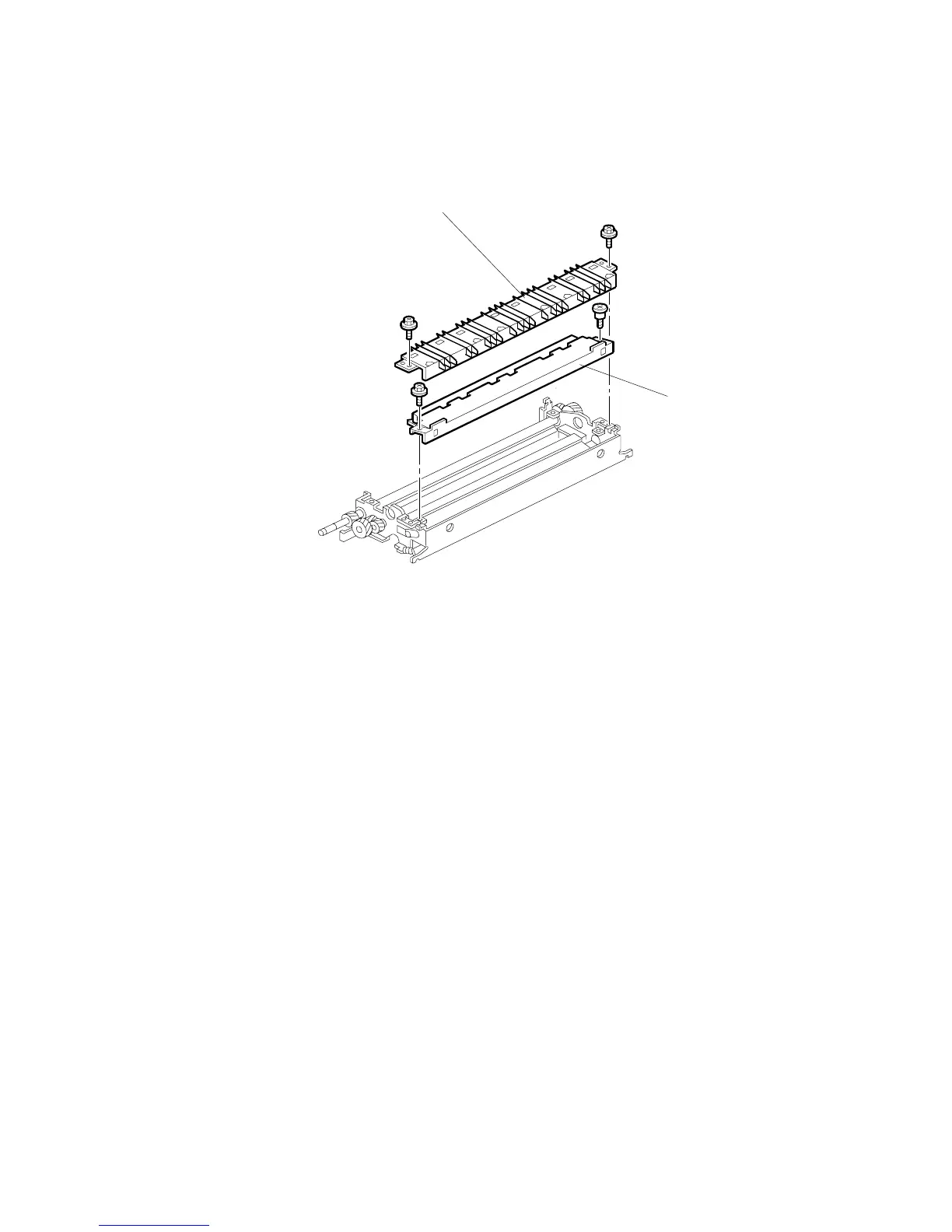

[A]: Entrance guide plate ( x2)
[B]: Lubrication bar ( x2)
Important! Work carefully to avoid scratching the paper transfer roller.
Reinstallation
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R305.WMF
[A]
[B]
