Toshiba e-STUDIO4500c Service Manual

PAPER TRANSFER UNIT August, 2006
3-68

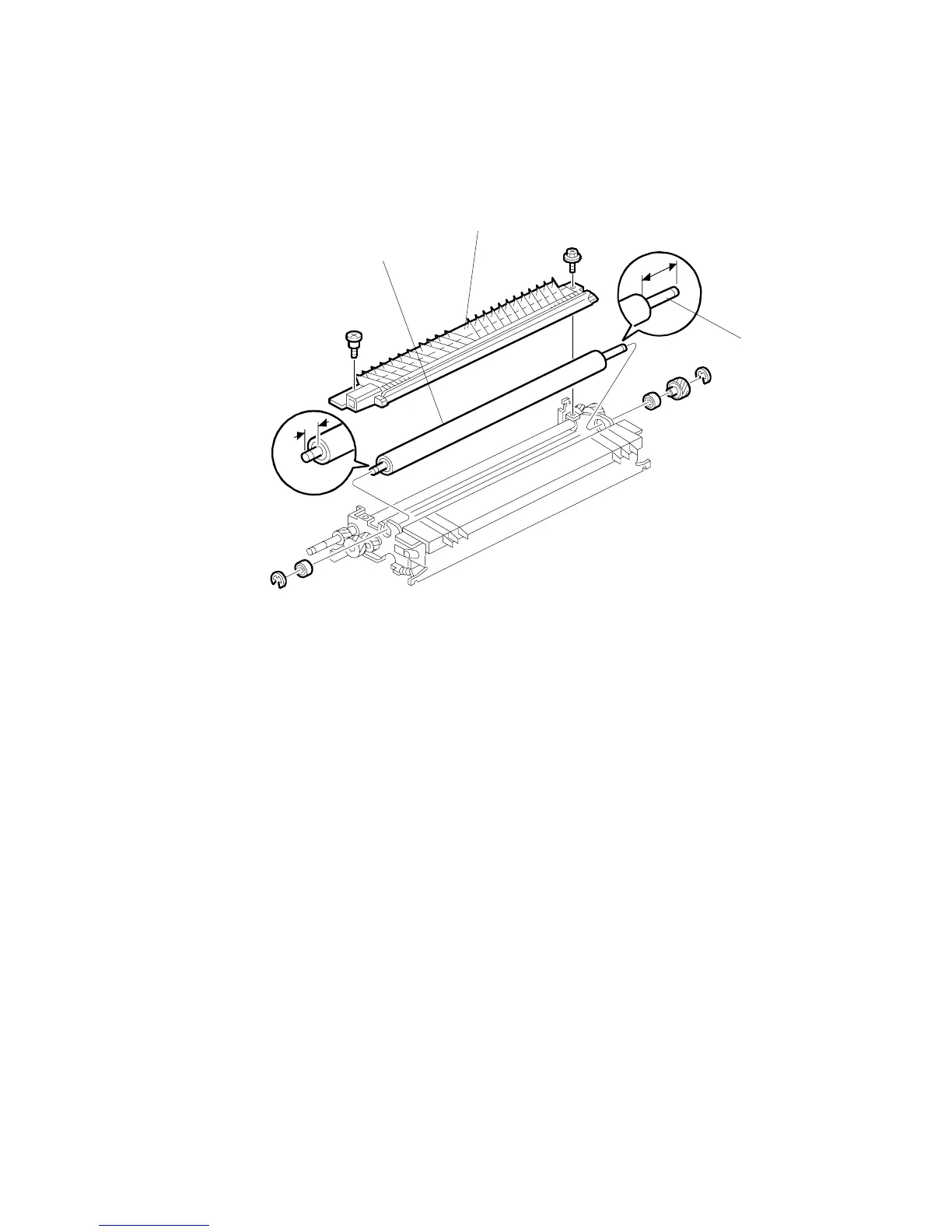

3.7.4 PAPER TRANSFER ROLLER, PAPER DISCHARGE PLATE
Remove:
• Paper transfer unit (3.7.3)
[A]: Paper discharge plate ( x2)
[B]: Paper transfer roller ( x2, Gear x1, Shaft bearings x2)
Reinstallation
• When you install the roller, the long end [C] is at the rear.
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R304.WMF
[A]
[C]
[B]
