Toshiba e-STUDIO4500c - Overview; Paper Registration

PAPER FEED August 2006
6-126
6.13.11 PAPER REGISTRATION
Overview

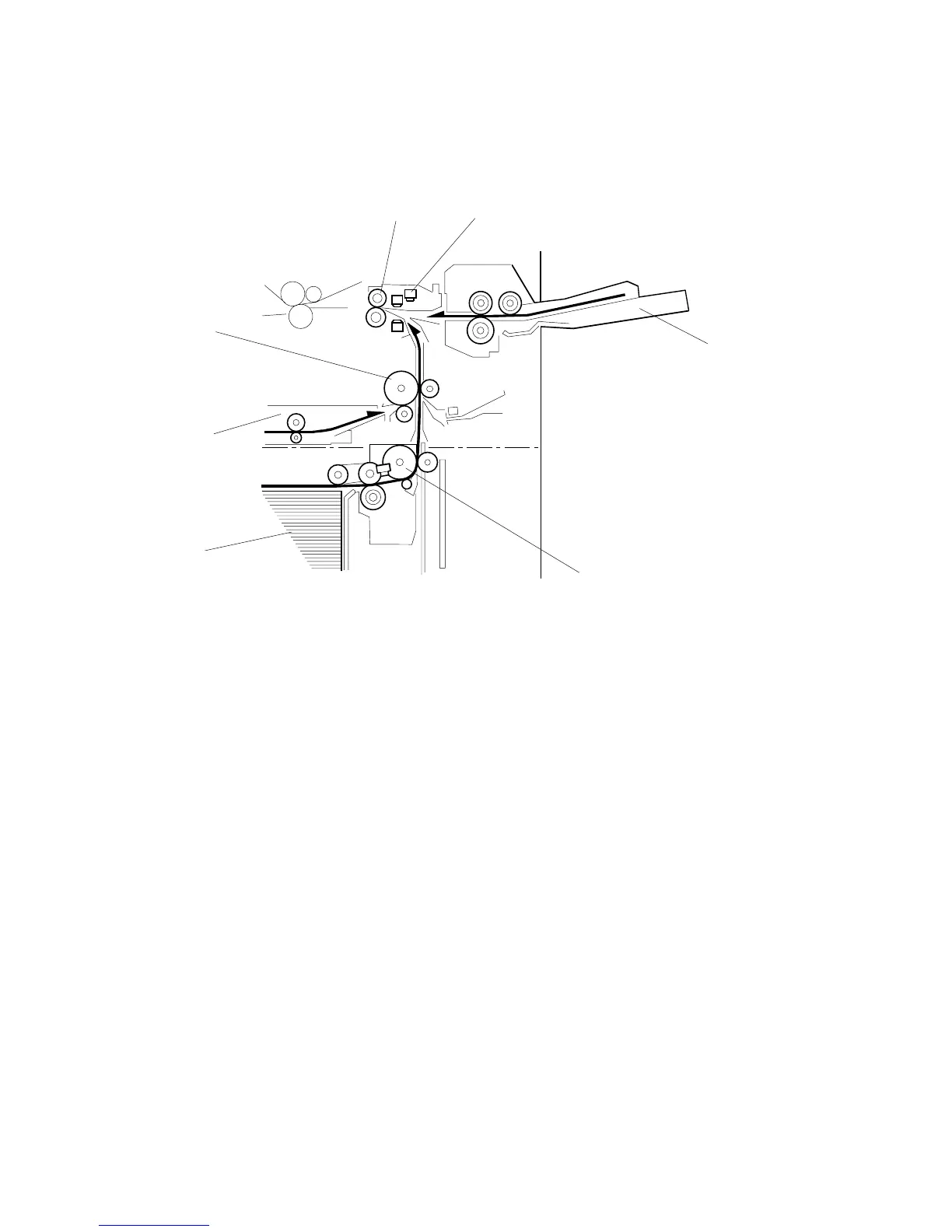

The registration rollers [A] and registration sensor [B] handle paper fed from six
sources:
[C]: Tandem tray and two universal trays
[D]: Duplex unit
[E]: Bypass tray
The bypass tray feeds paper directly to the registration rollers.
The grip rollers [F] feed paper from the trays into the vertical transport path to the
registration rollers.
The upper relay roller [G] feeds all paper exiting the vertical transport path. It also
feeds paper from the duplex unit and LCT.
B132D941.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
