Toshiba e-STUDIO4500c Service Manual

EXIT GUIDE PLATE, UPPER TRAY EXIT SENSOR August 2006
B700-8

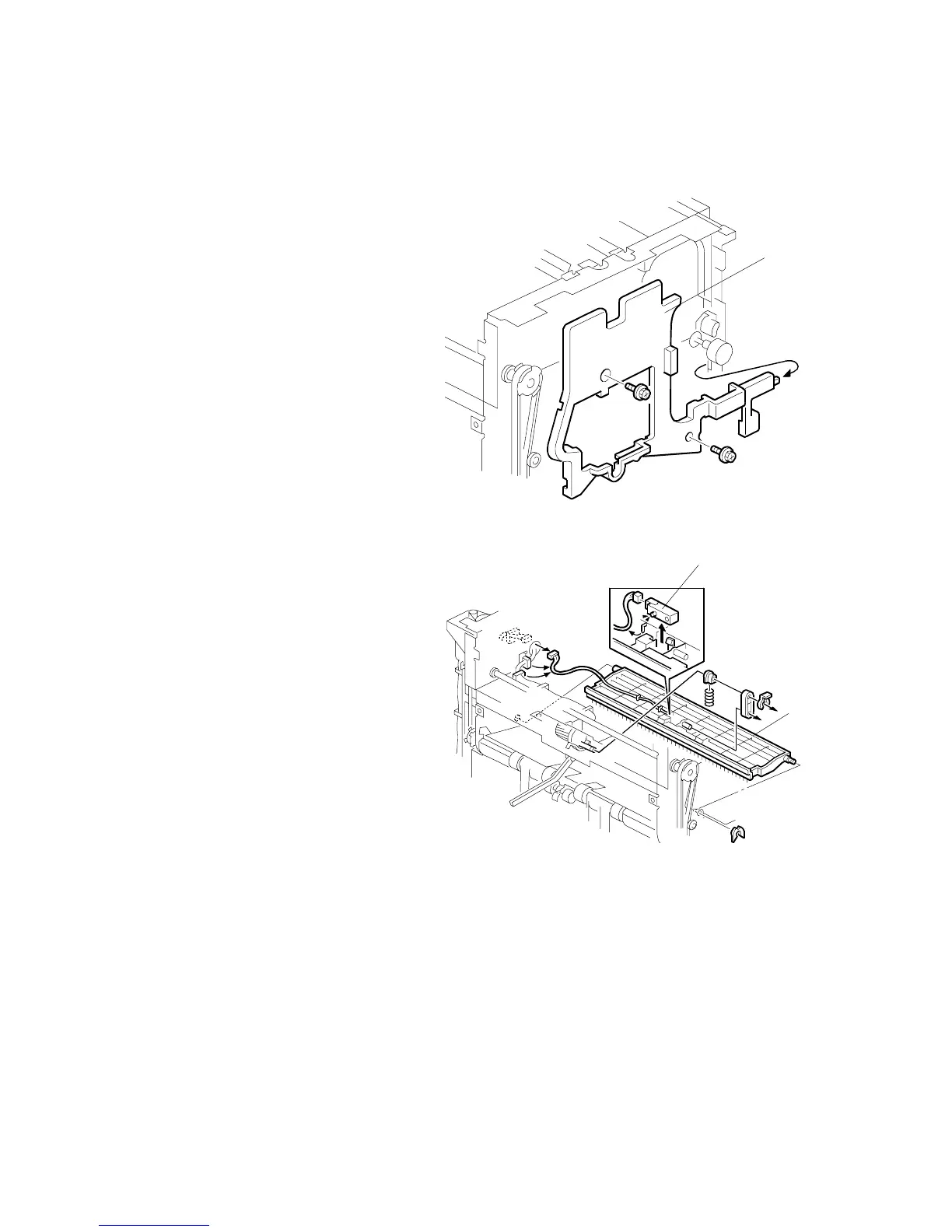

1.6 EXIT GUIDE PLATE, UPPER TRAY EXIT SENSOR
Remove:
• Rear cover (1.1.1)
• Upper covers (1.1.1)
• Front door (1.1.1)
• Cover (1.1.1)
• Paper exit cover (1.1.1)
[A]: Inner cover ( x2)
[B]: Exit guide plate
•   x1
•  Link and spring
•   x1
•   x1
[C]: Upper tray exit sensor (S6)
( x1)
B700R109.WMF
B700R110.WMF
[A]




[B]
[C]
