Toshiba e-STUDIO4500c - Ardf Separation Roller

August, 2006 ARDF
3-167
3.18.10 ARDF SEPARATION ROLLER
• Open the feed cover
• Remove the original feed unit. (3.18.2)
Remove:

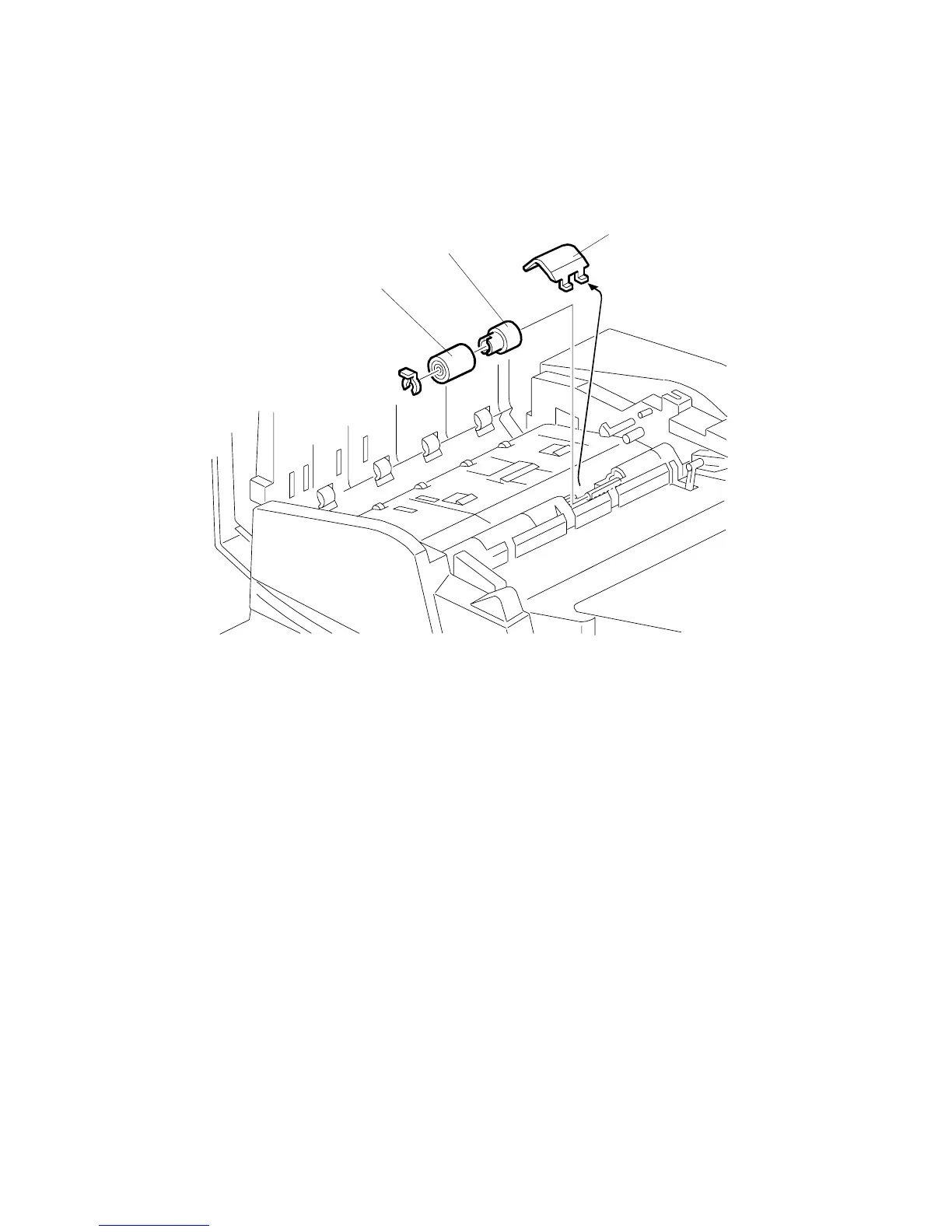

[A]: Separation roller cover. Use the tip of a small flathead screwdriver.
[B]: Separation roller ( x 1)
[C]: Torque limiter
B132R108.WMF
[A]
[B]
[C]
