Toshiba e-STUDIO4500c Service Manual

August, 2006 PAPER TRANSFER UNIT
3-73
3.7.9 REGISTRATION MOTOR
Remove:
• Drawer unit (3.2.9)
[A]: Drawer unit connector bracket ( x1,  x3,  x2)
[B]: Gear cover ( x1)
[C]: Registration gear ( x1, Spring pin x1)
[D]: Registration motor assembly ( x3,  x1)
Reinstallation
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R618.WMF

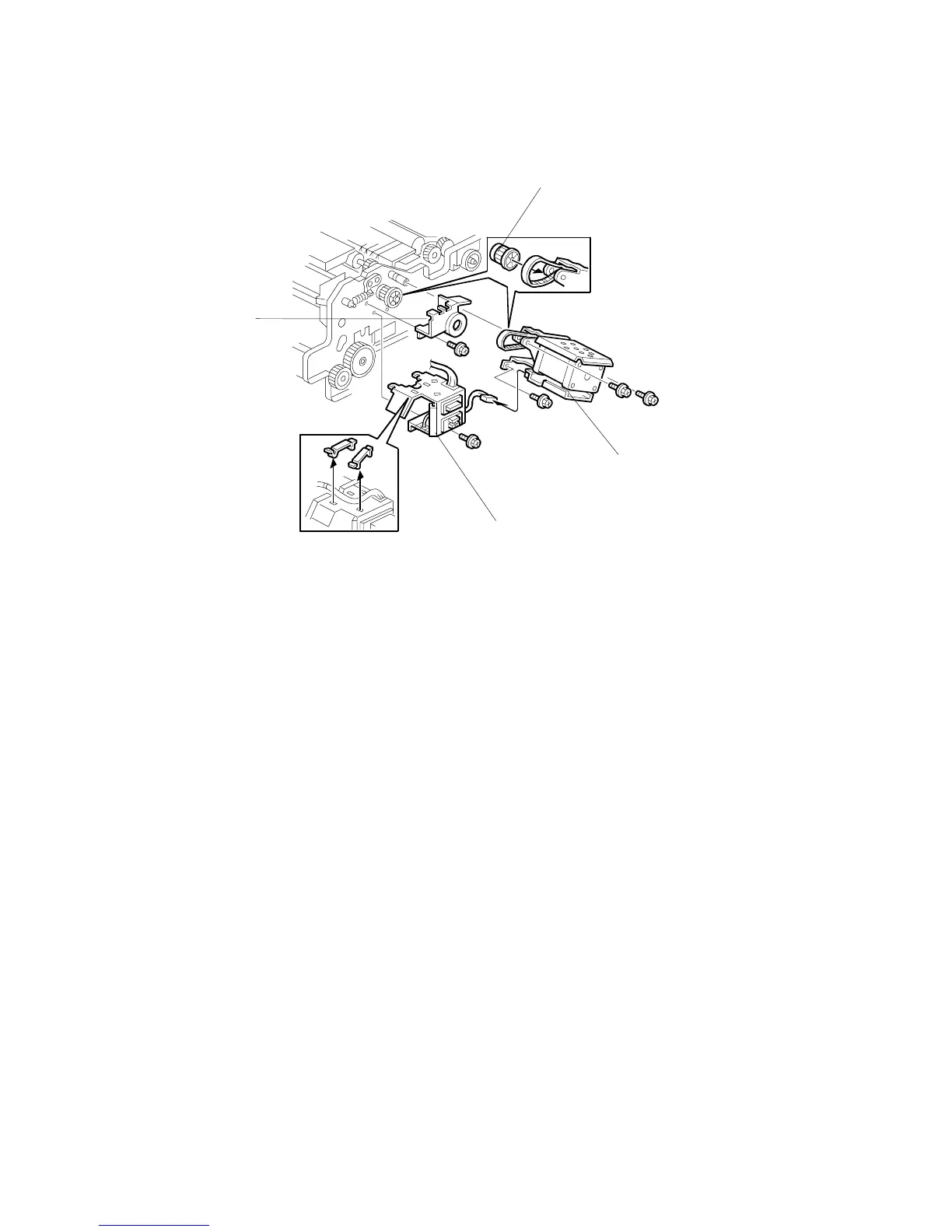

[A]
[B]
[C]
[D]
