Toshiba e-STUDIO4500c Service Manual

August, 2006 BOARDS
3-143

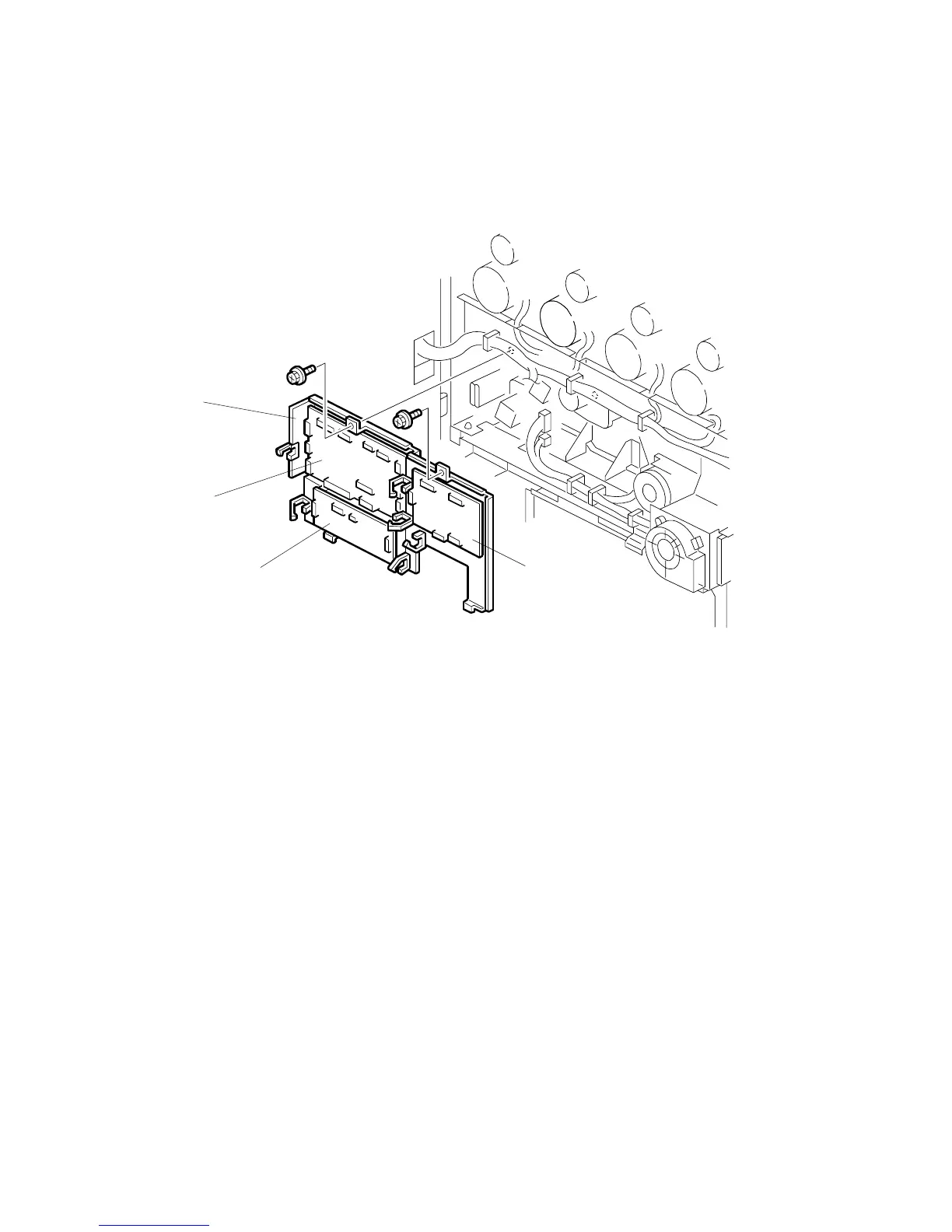

3.14.10 TRANSFER MOTOR, DRIVE, DRIVE MOTOR BOARDS
• Remove rear covers (3.2.6)
• Open and lock the controller box (3.2.11)
[A]: Board assembly ( x5,  x21,  x2)
[B]: DRB (Drive Board)
[C]: TMB (Transfer Motor Board)
[D]: DMB (Drive Motor Board)
B132R716.WMF
[A]
[B]
[C]
[D]
