Toshiba e-STUDIO4500c Service Manual

August, 2006 LCT (B473), LCT ADAPTER (B699)
1-53
Installation
LCT Installation

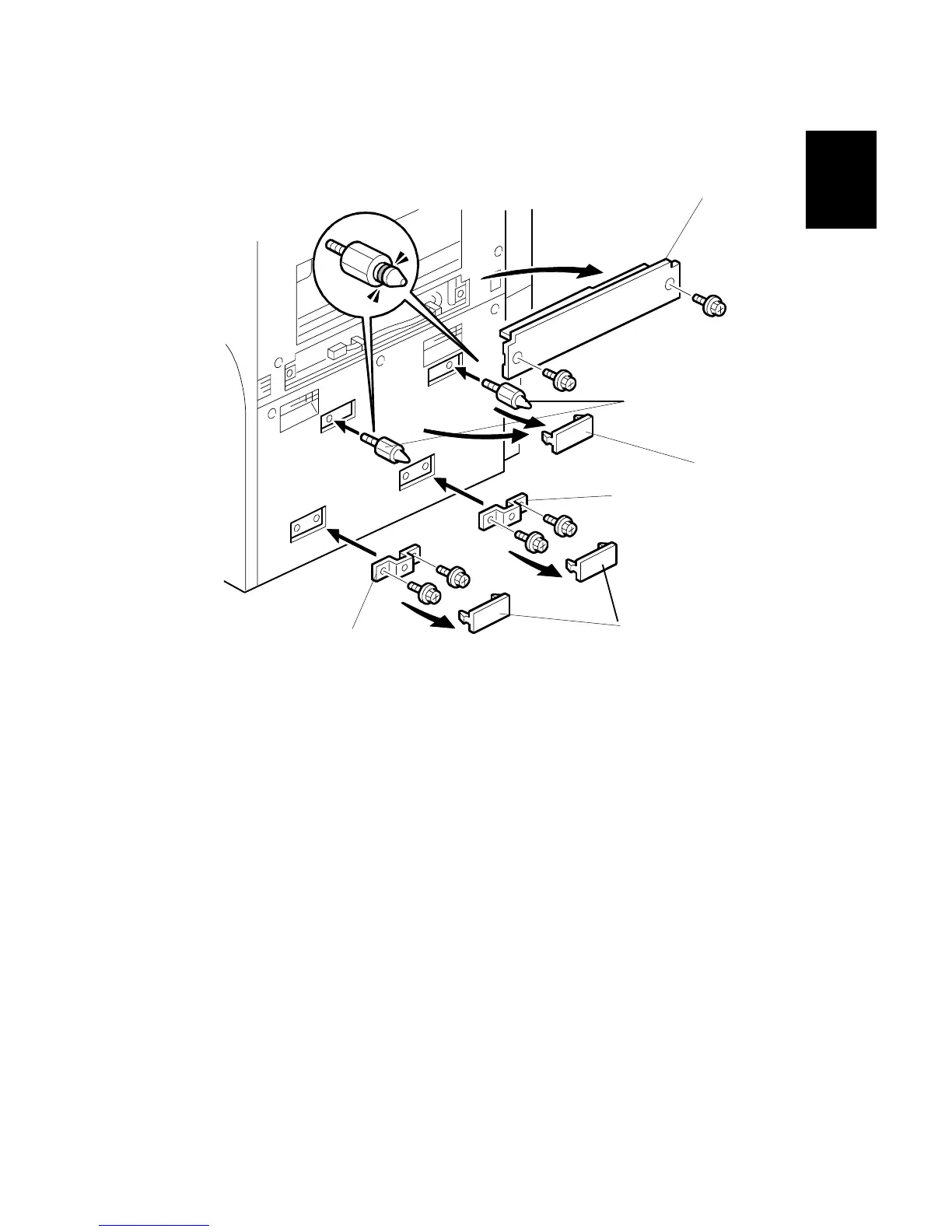

1. Remove the LCT installation cover [A] from the right side of the machine.
( x 2).
2. Remove the upper covers [B].
3. Remove the lower covers [C].
4. Attach the brackets [D] that are supplied with the LCT Adapter (B699) ( x 2
each – M4 x 8).
5. Attach the two grooved docking pins [E].
NOTE: The docking pin without a groove is not necessary for this installation.
B699I104.WMF
[A]
[B]
[C]
[D]
[D]
[E]
