Toshiba e-STUDIO4500c Service Manual

LCT (B473), LCT ADAPTER (B699) August, 2006
1-54

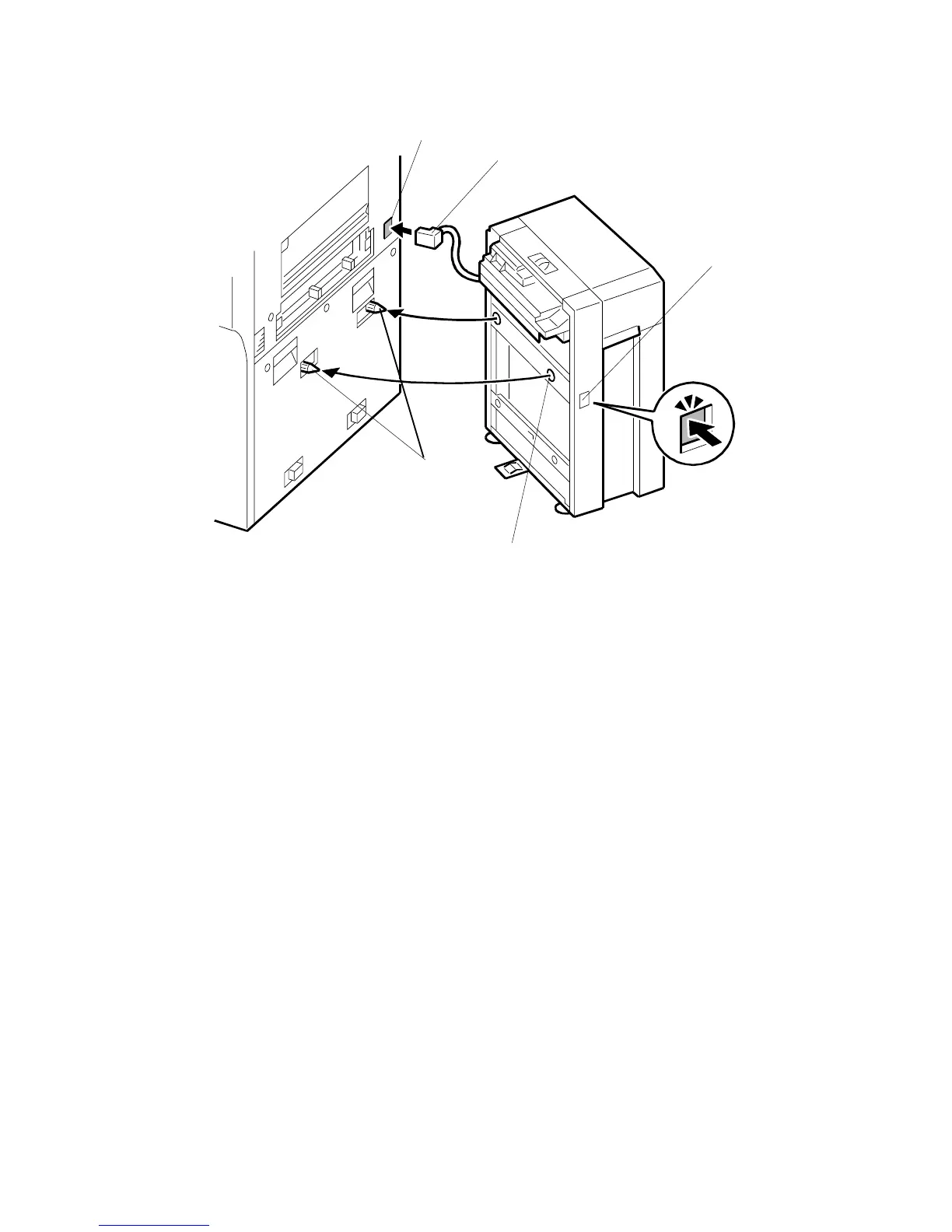

6. Remove the connector cover [A].
7. Align the holes on the side of the LCT [B] with the docking pins [C] on the side
of the machine.
8. Slowly push the LCT onto the pins.
NOTE: The release button [D] is used to unlock the LCT.
9. Connect the plug [E] of the LCT power connector to the side of the machine.
B699I115.WMF
[A]
[B]
[C]
[D]
[E]
