Toshiba e-STUDIO4500c Service Manual

SCANNER UNIT August, 2006
3-32
Scanner Wire Reinstallation and Scanner Position Adjustment

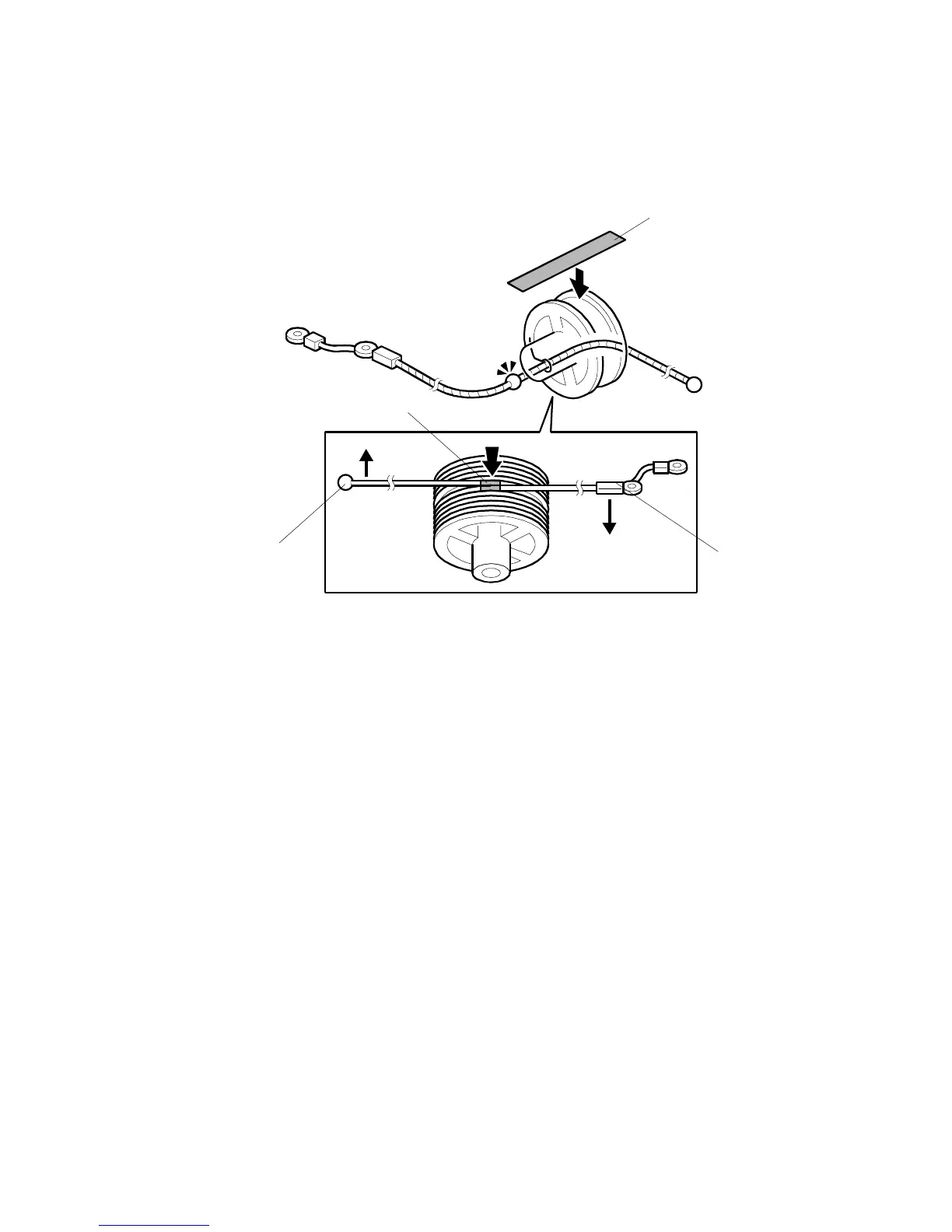

1. Place the beads [A] on the middle of the wire on the pulley openings.
2. Wind the ball end of the wire [B] 4 times.
3. Wind the other end of the wire [C] 5 times.
4. Attach tape [D] across the pulley to temporarily hold the wires in place.
5
4
B132R136.WMF
[A]
[B]
[C]
[D]
