FUSING UNIT August, 2006

3-92

3.9.7 FUSING THERMISTORS, HEATING ROLLER TEMPERATURE

SENSOR

Remove:

• Fusing unit (3.9.2)

• Fusing unit upper cover (3.9.1)

• Fusing cleaning unit (3.9.5)

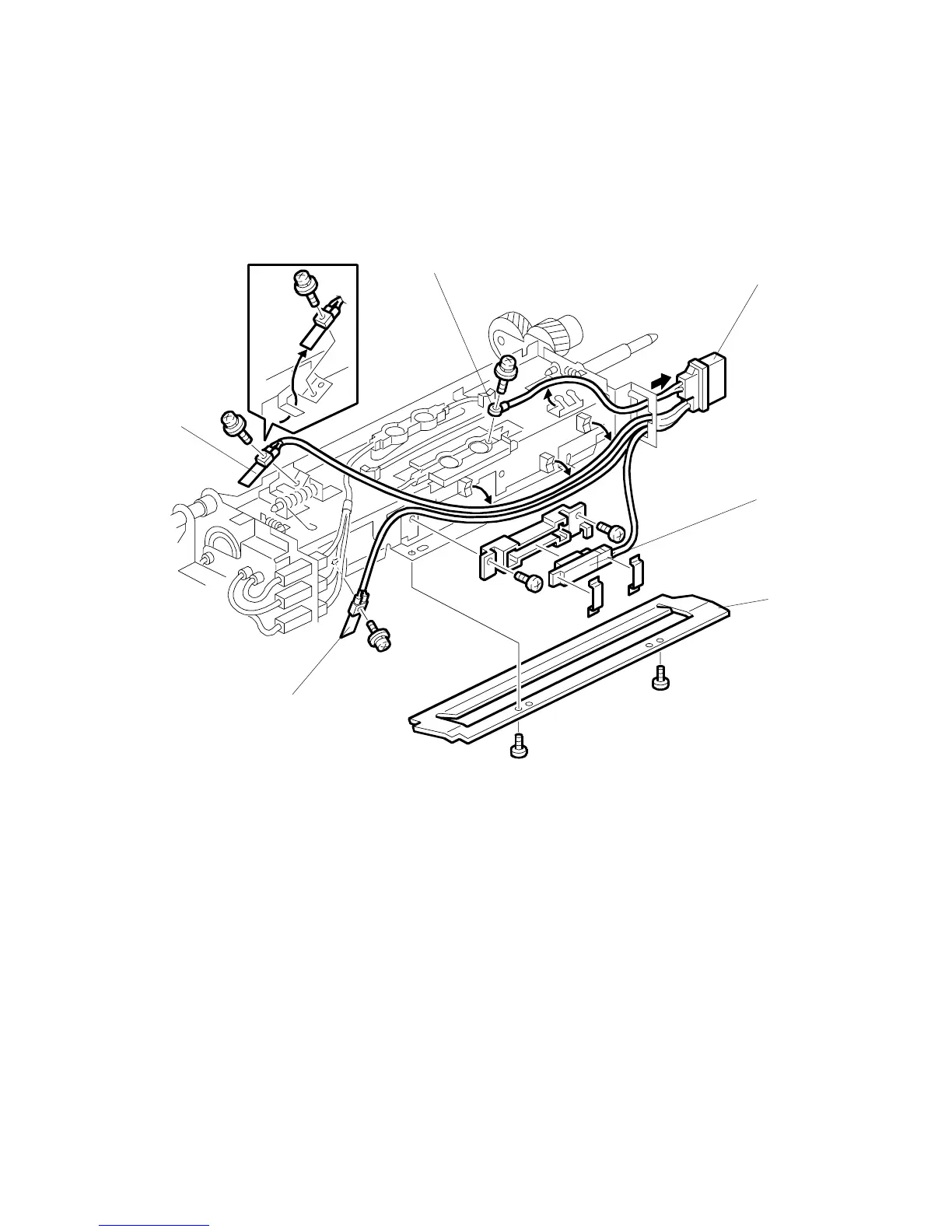

[A]: Fusing unit belt cover ( x2)

[B]: Hot roller thermistor ( x1)

[C]: Heating roller thermistor ( x1)

[D]: Heating roller temperature sensor ( x2, Spring plates x2)

[E]: Wire ( x1)

[F]: Connector leads. Pull through the frame.

B132R409.WMF

[A]

[B]

[C]

[D]

[E]

[F]
