Toshiba e-STUDIO4500c Service Manual

PCU (PHOTOCONDUCTOR UNITS) August, 2006
3-56
3.5.6 TD SENSOR
Remove:
• Open the front door.
• Remove the PCU from the machine. (3.2.7)
[A]: Connector bracket ( x1)
[B]: TD sensor ( x2)
Reinstallation
After replacing the TD sensor:
• Replace the developer in the PCU where the TD sensor was replaced. (3.5.1)
• Do SP3801 001 -
006 only for the PCU where the TD sensor was replaced.

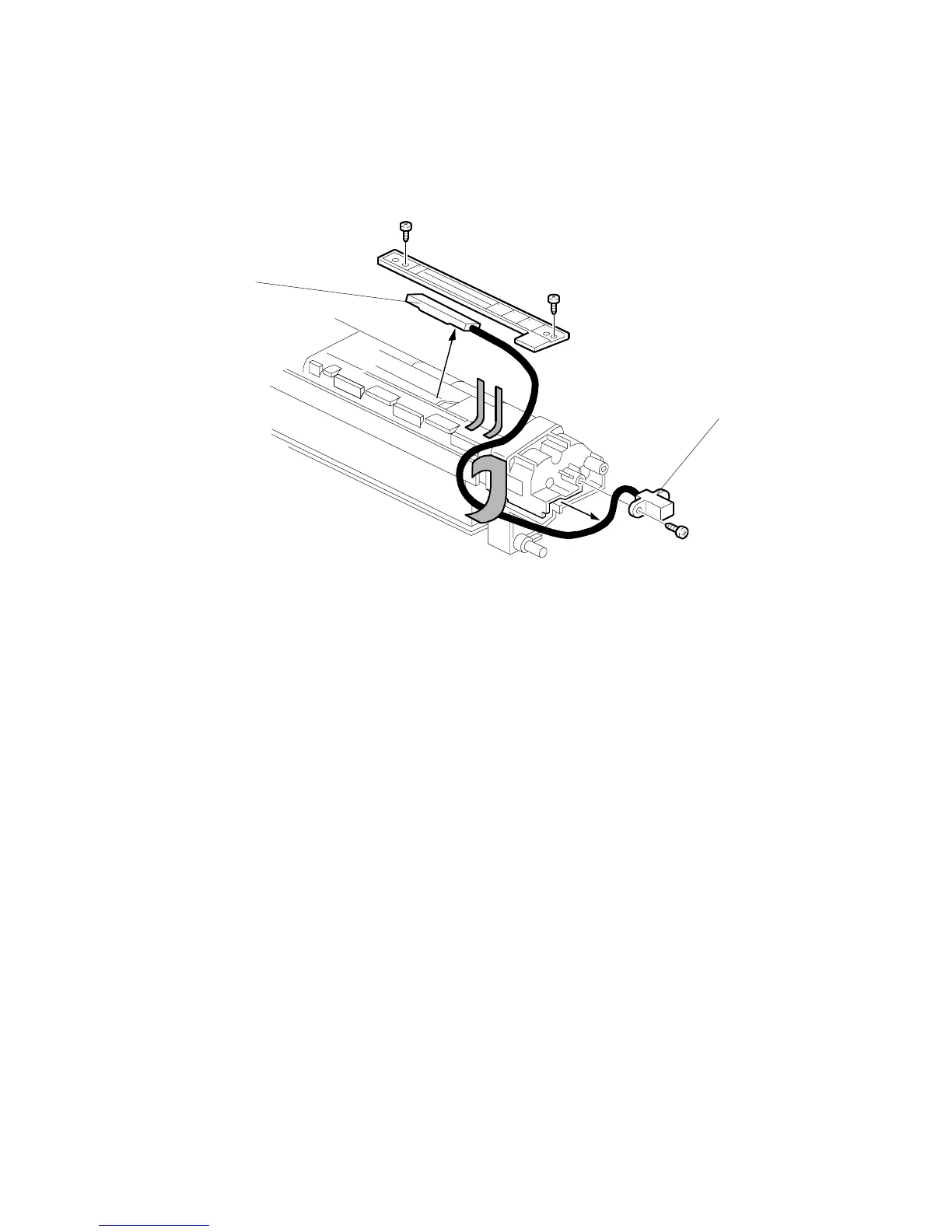

B132R223.WMF
[A]
[B]
