PCU (PHOTOCONDUCTOR UNITS) August, 2006

3-54

3.5.5 PCU CLEANING UNIT

Remove:

• PCU (3.2.7)

• Charge roller unit (3.5.3)

• Drum (3.5.4)

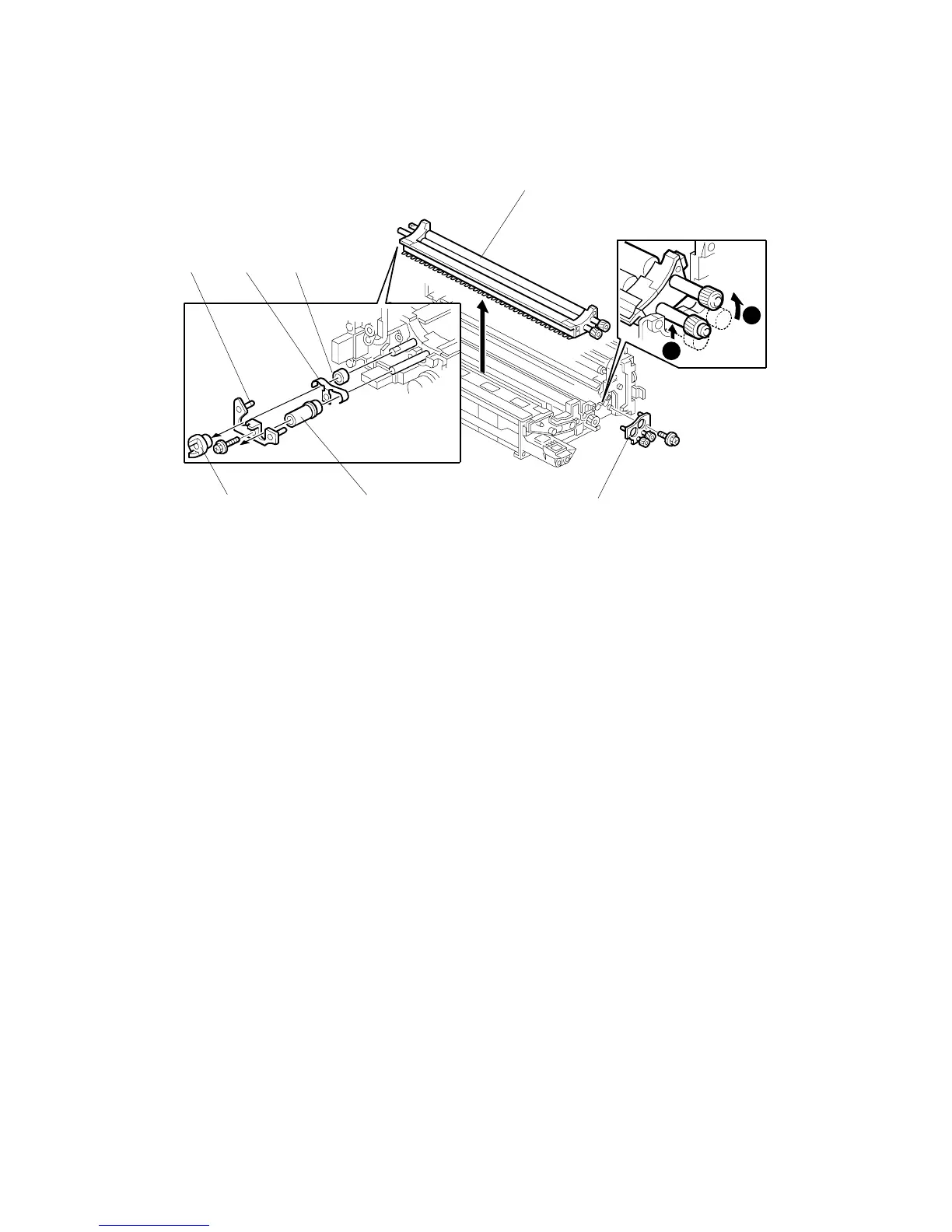

[A]: PCU joint

[B]: Rear bracket ( x1)

[C]: Long sleeve

[D]: Leaf spring

[E]: Short sleeve

[F]: Bracket and 2 gears ( x1)

[G]: Cleaning unit

• When you remove the cleaning unit, the mylar can catch on the PCU frame

and will scatter toner. To prevent this, rotate  then lift 

• The cleaning unit contains these PM parts: lubricant brush, toner brush.
