Toshiba e-STUDIO4500c Service Manual

ARDF August, 2006
3-164

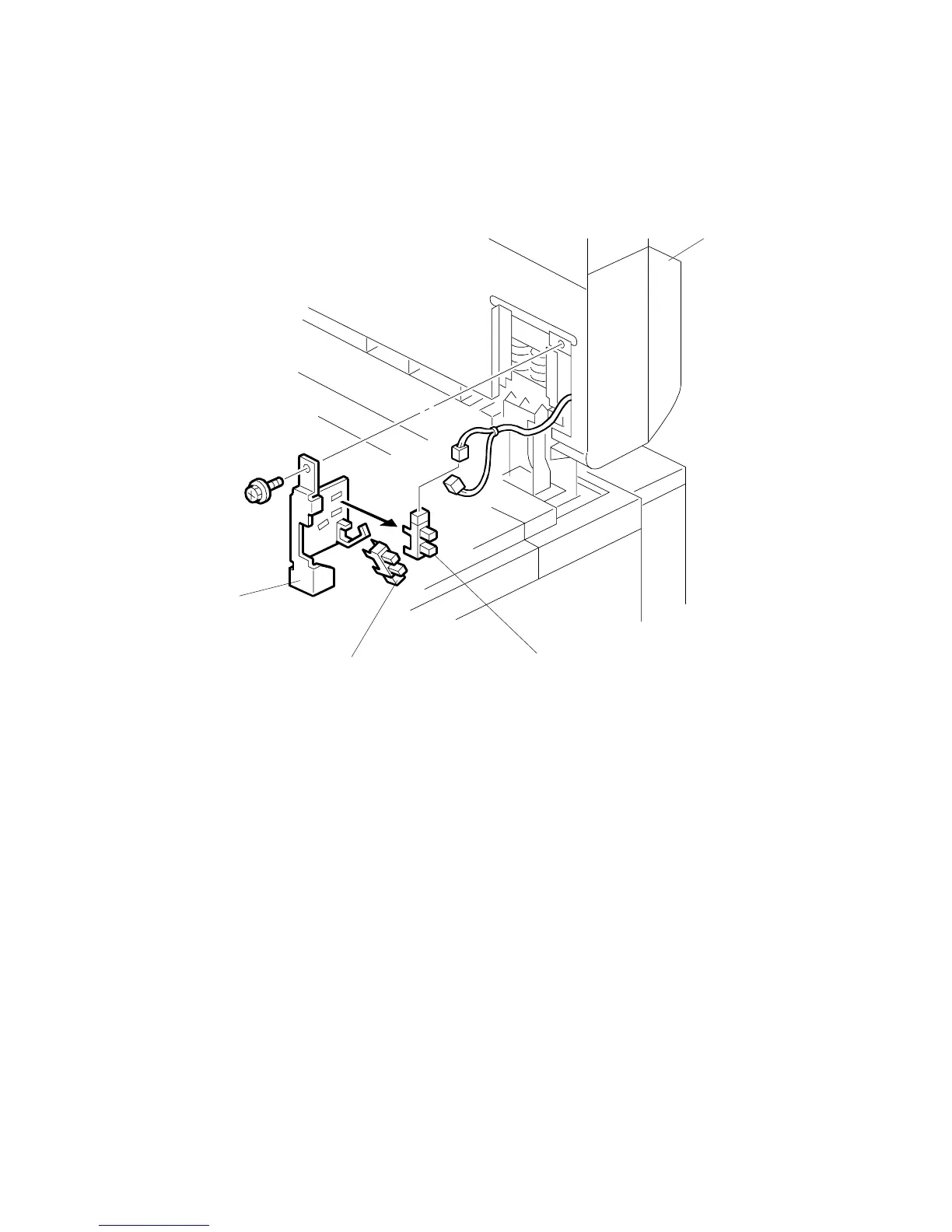

3.18.8 ARDF POSITION SENSOR, APS START SENSOR
[A]: Raise the ARDF to the vertical position.
Remove:
[B]: APS bracket ( x1)
[C]: ARDF position sensor ( x1,  x1)
[D]: APS start sensor ( x1,  x1)
B132R125.WMF
[A]
[B]
[D]
[C]
