Toshiba e-STUDIO4500c Service Manual

August, 2006 ARDF
3-163

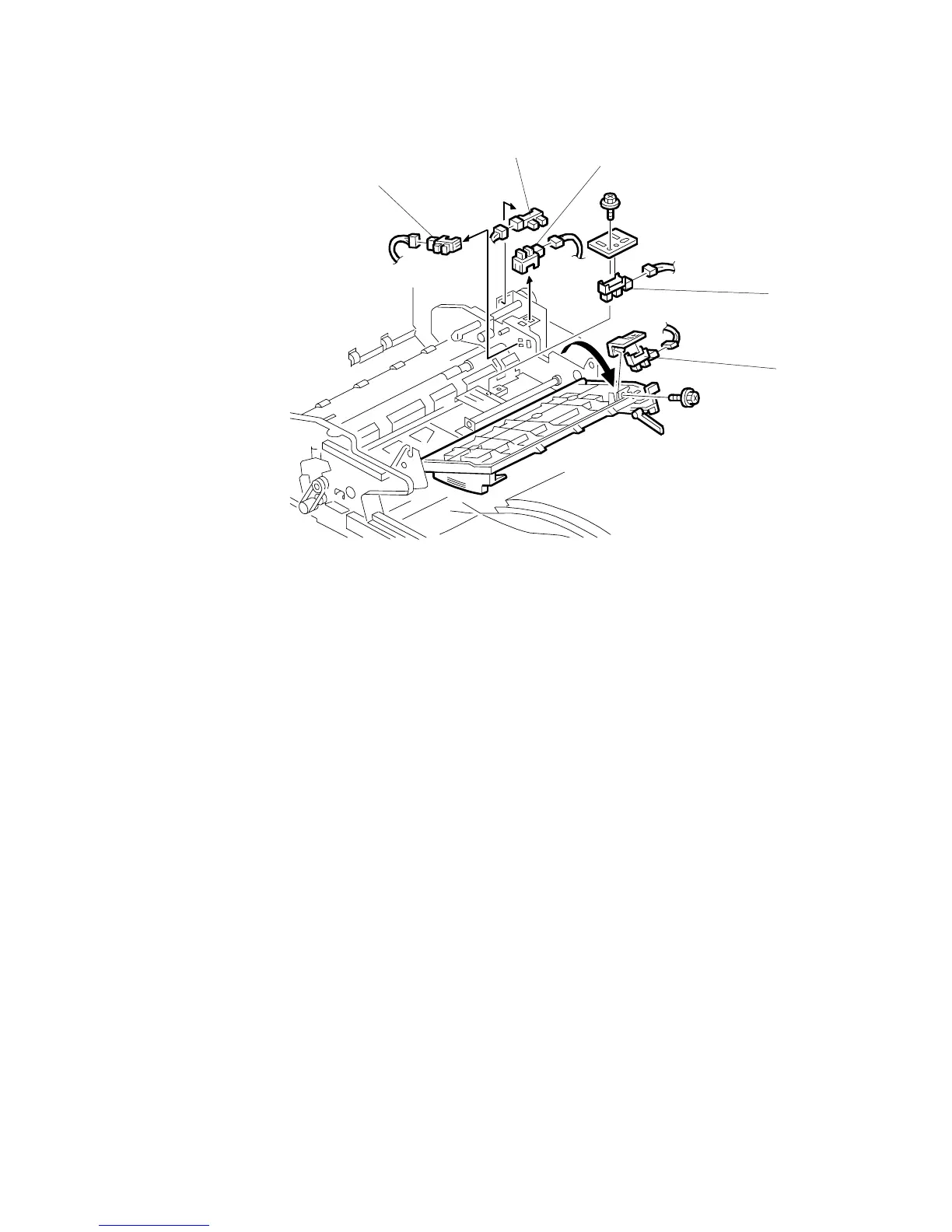

[A]: Original set sensor ( x1,  x1)
[B]: Upper inverter sensor ( x1,  x1)
[C]: Feed cover sensor ( x1)
[D]: Pick-up roller HP sensor ( x1)
[E]: Bottom plate position sensor ( x1)
B132R118.WMF
[A]
[B]
[C]
[D]
[E]
