Toshiba e-STUDIO4500c Service Manual

August, 2006 TANDEM TRAY (TRAY 1)
3-115

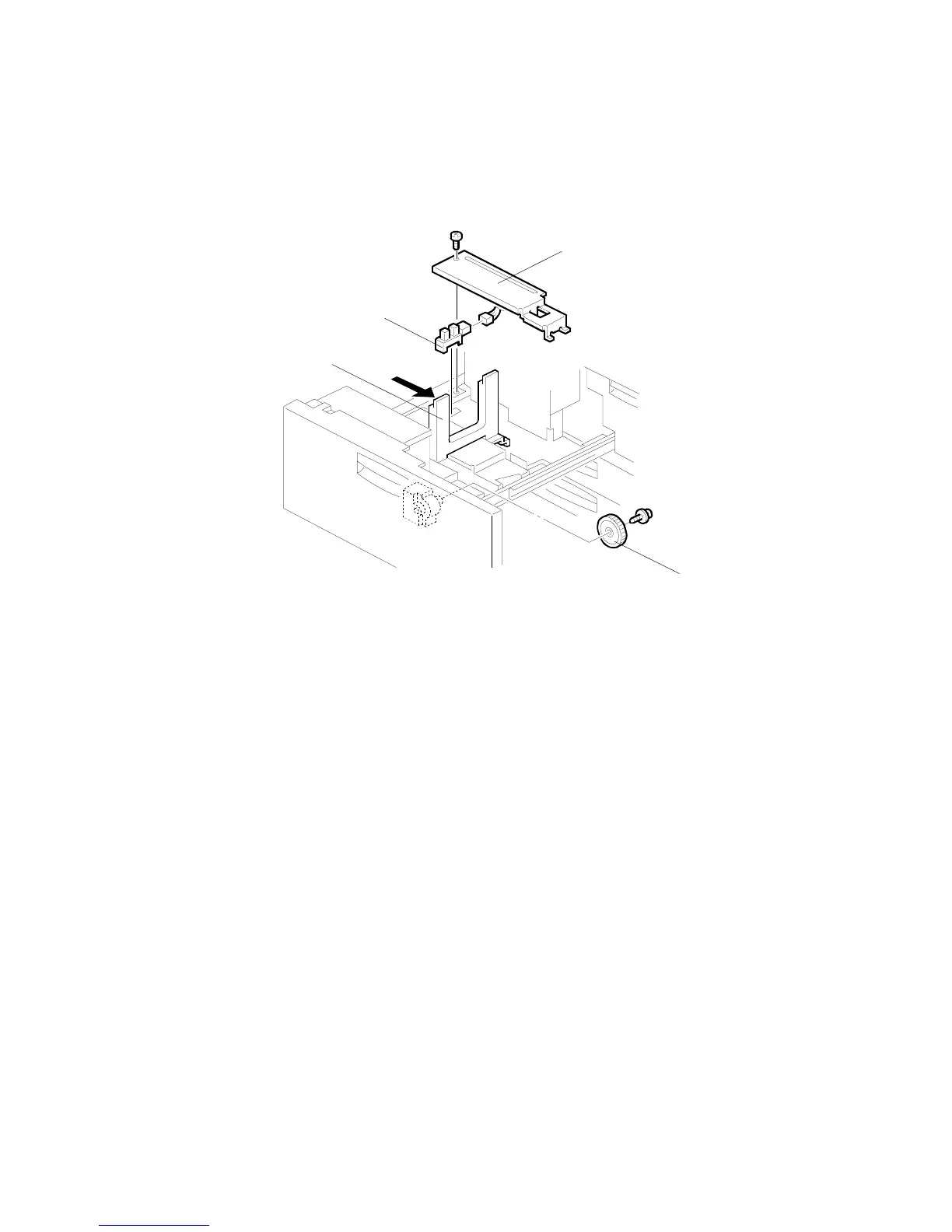

3.11.3 REAR FENCE HP SENSOR REPLACEMENT
• Pull out the tandem feed tray.
[A]: Rear bottom plate ( x 1).
[B]: Back fence transport gear ( x 1)
[C]: Move the back fence to the right.
[D]: Rear fence HP sensor ( x 1)
B140R825.WMF
[D]
[C]
[A]
[B]
