Toshiba e-STUDIO4500c Service Manual

August, 2006 SCANNER UNIT
3-29
3.3.5 SCANNER HP SENSOR
Remove:
• ARDF (3.2.1)
• Exposure glass (3.3.1)
• Top rear, left, right covers (3.2.5)

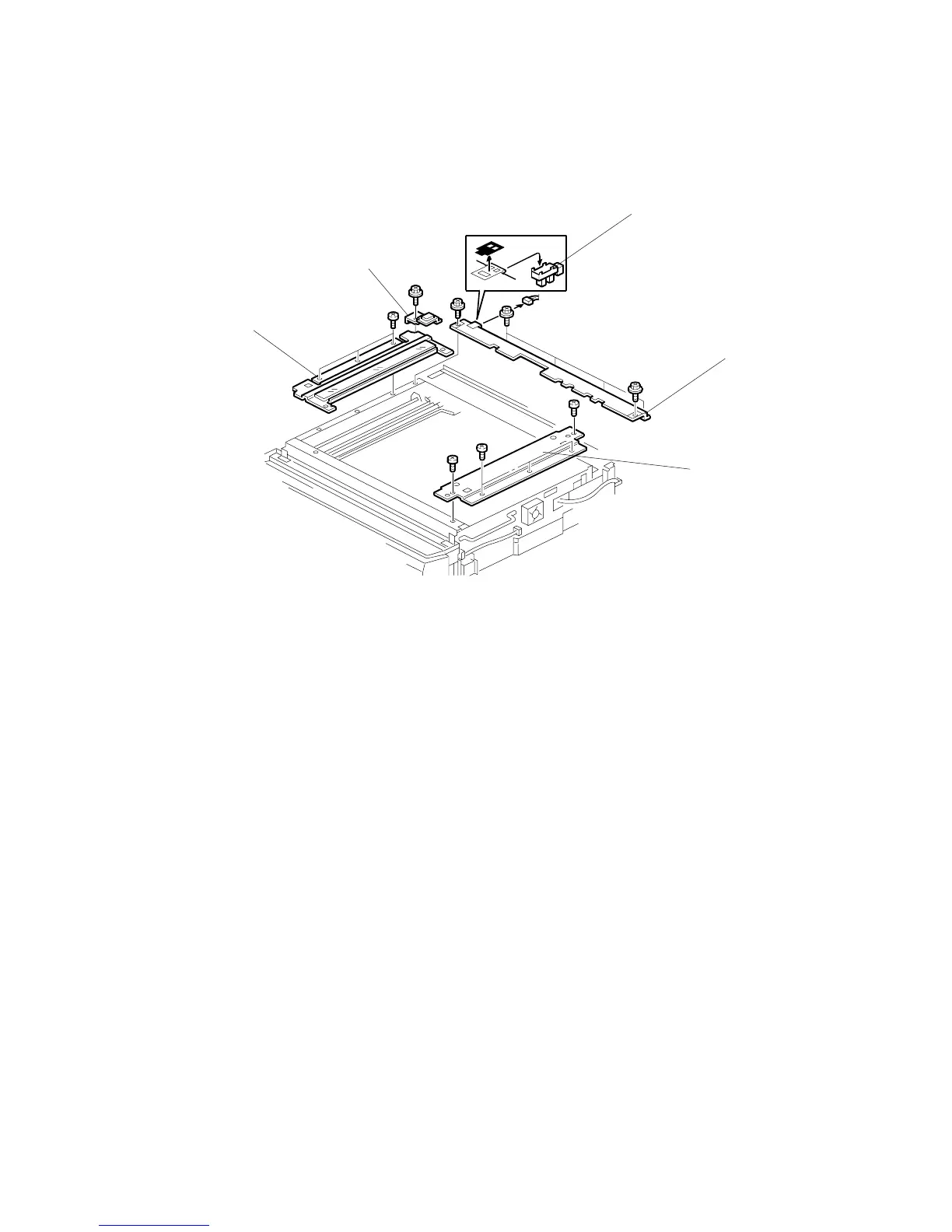

[A]: Ground plate ( x1)
[B]: Left stay ( x3)
[C]: Right stay ( x5)
[D]: Rear stay ( x4)
[E]: Scanner HP sensor ( x1)
B132R134A.WMF
[A]
[B]
[C]
[D]
[E]
