PAPER TRANSFER UNIT August, 2006
3-70

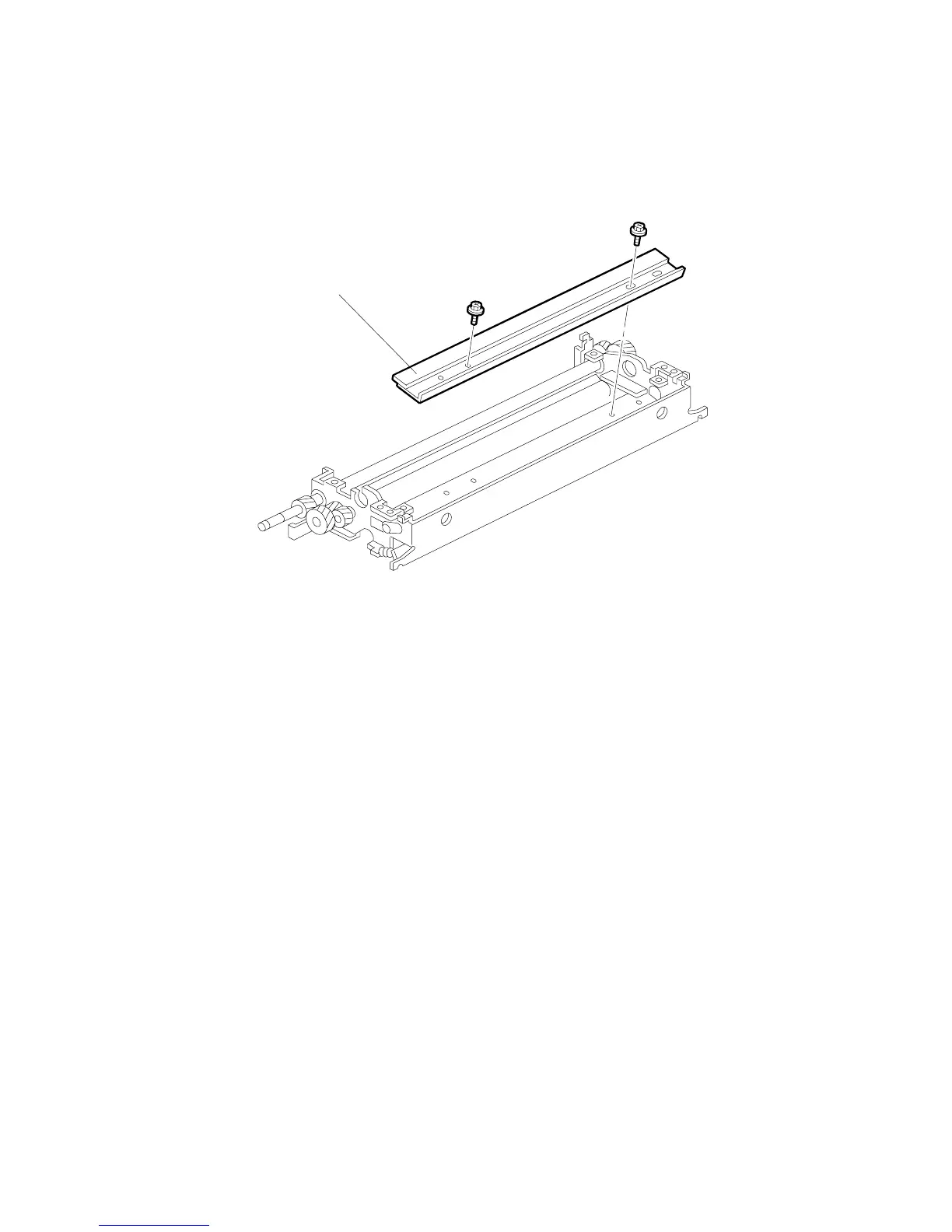

3.7.6 CLEANING BLADE
Remove:
• Paper transfer unit (3.7.3)
• Lubrication bar (3.7.5)
[A]: Cleaning blade ( x2)
Reinstallation
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R306.WMF
[A]
