PUNCH UNIT B531 August 2006
1-96
1.12.2 INSTALLATION
WARNING!
Turn the machine off and disconnect the machine power cord before you
start this procedure.
1. If the finisher is connected to the machine, disconnect it.
2. Open the front door and remove the rear cover ( x 2).
3. Remove the punch unit from its packing materials. Remove the motor protector
plate [A] ( x 4) and the cam lock plate [B] ( x 1).
4. Remove the inner cover [C] ( x 3).
5. Behind the inner cover at [D] and [E], push the lock tabs to the right to release
the inner cover from the frame.
6. Remove the plastic sections [F] from the cover.

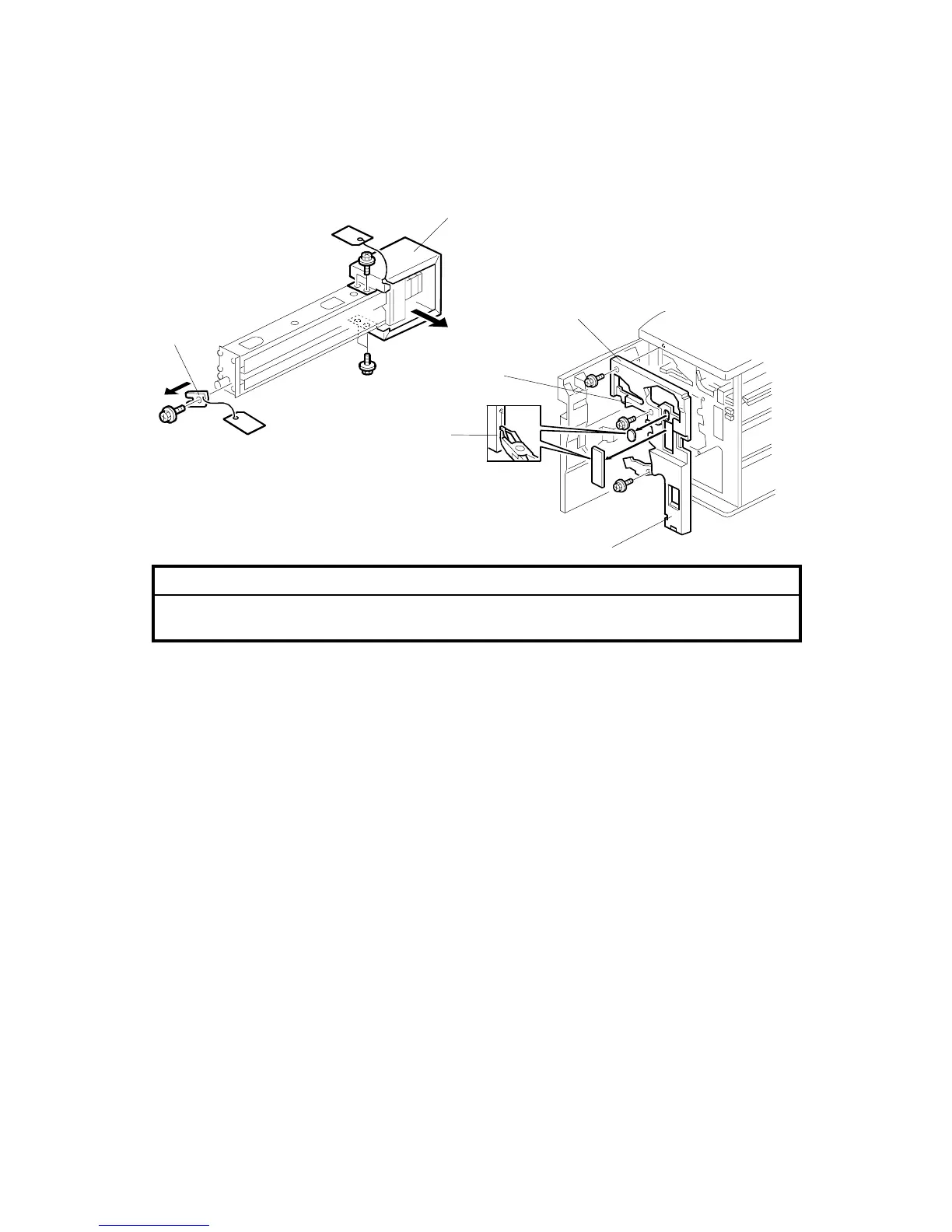

B531I002.WMF
