Toshiba e-STUDIO4500c Service Manual

August 2006 PUNCH UNIT B531
1-97
Installation

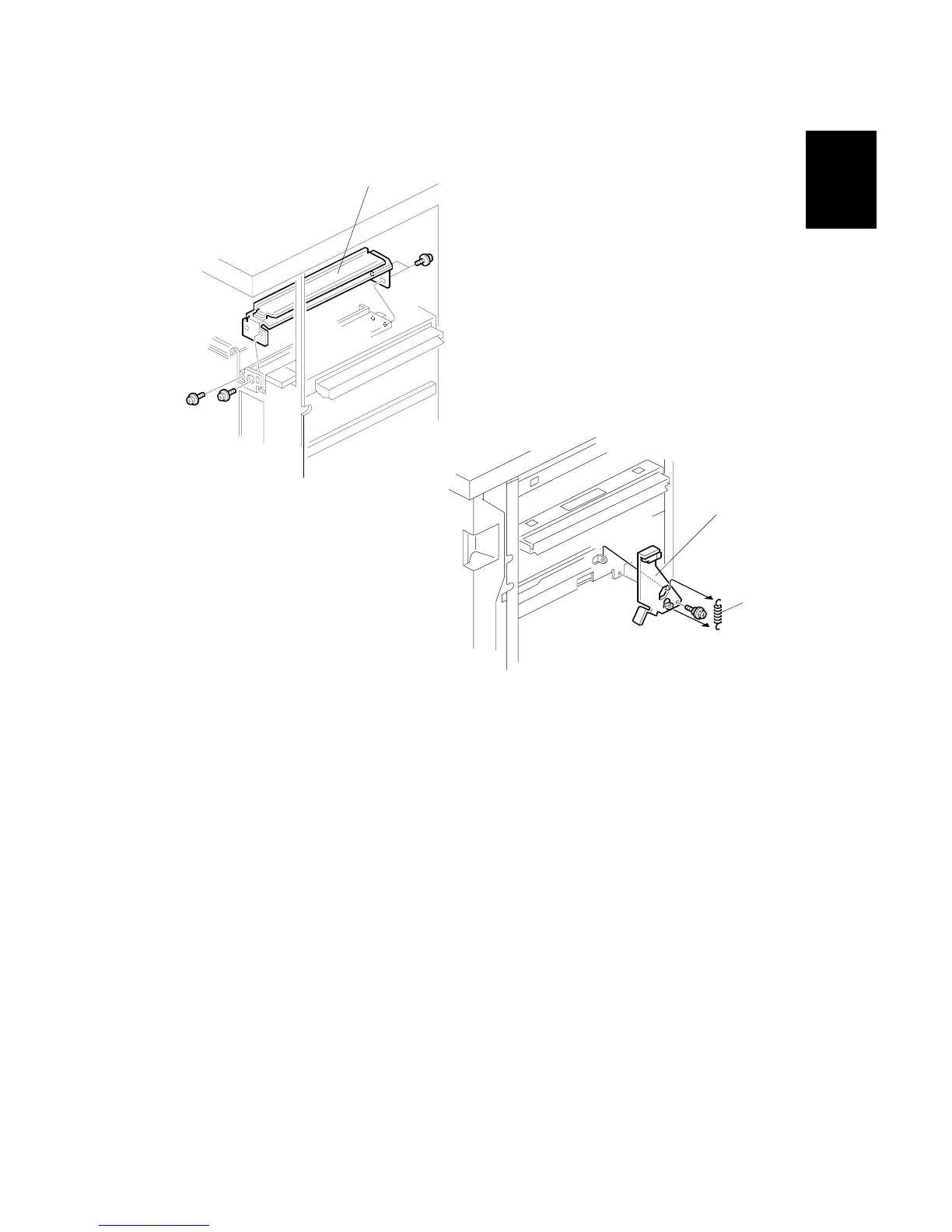

7. Remove the paper guide [A] ( x 4).
8. Install the sensor arm and sensor [B] ( x 1), small step screw (M3 x 4).
NOTE: Make sure that the sensor arm turns freely on the step screw.
9. Attach the spring [C].
B531I003.WMF
B531I004.WMF
[A]
[B]
[C]
