Toshiba e-STUDIO4500c Service Manual

DUPLEX UNIT August, 2006
3-106
3.10.3 DUPLEX UNIT SENSORS
Duplex Entrance Sensor
• Pull out the duplex unit.
Remove:
[A]: Bracket ( x 2)
[B]: Release harness clamp
[C]: Duplex entrance sensor ( x 1)
Reinstallation
• Insert the anti-static brushes into the roller holes.

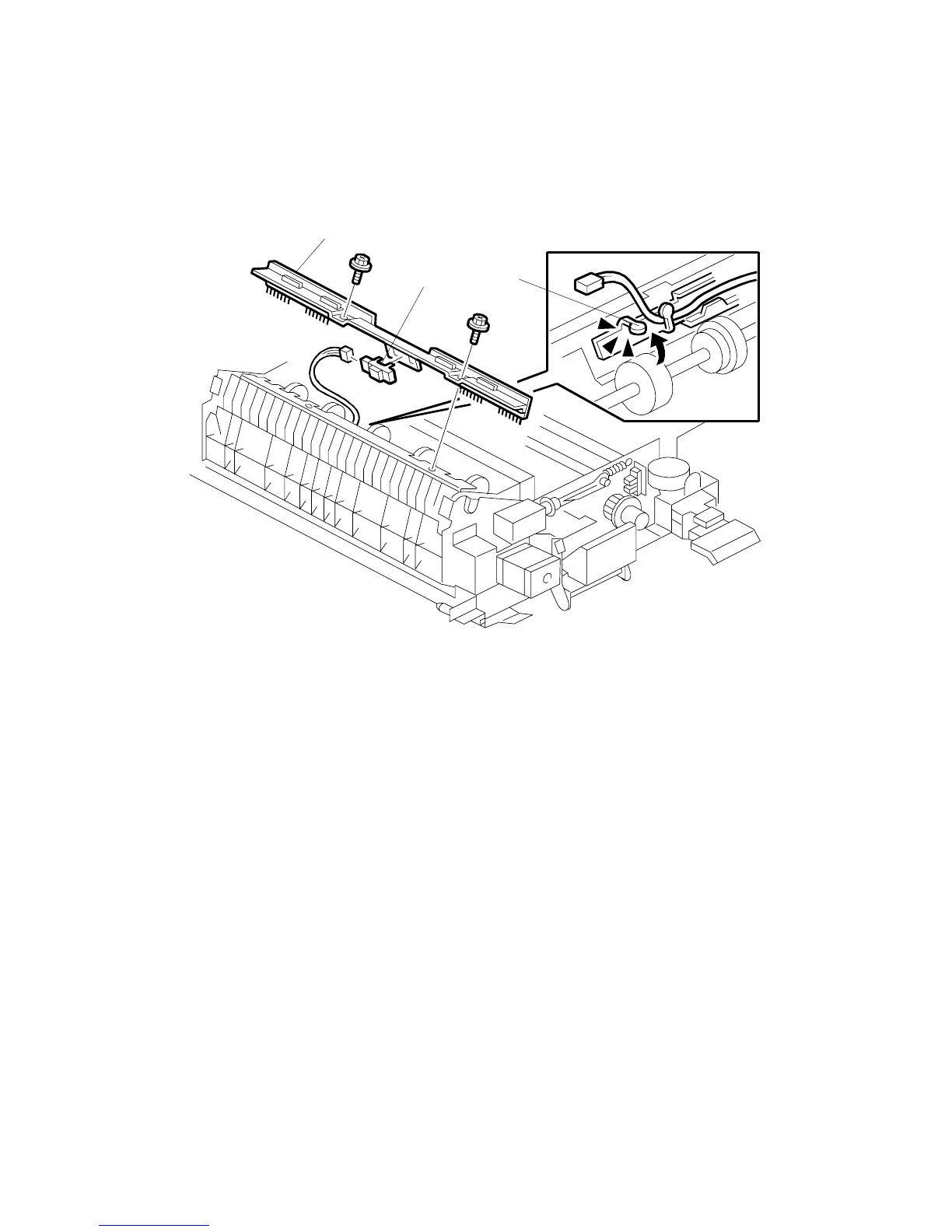

B132R502.WMF
[A]
[B]
[C]
