August, 2006 FUSING UNIT
3-89
3.9.4 PRESSURE ROLLER THERMOSTATS, THERMISTOR
Remove:
• Fusing unit (3.9.2)

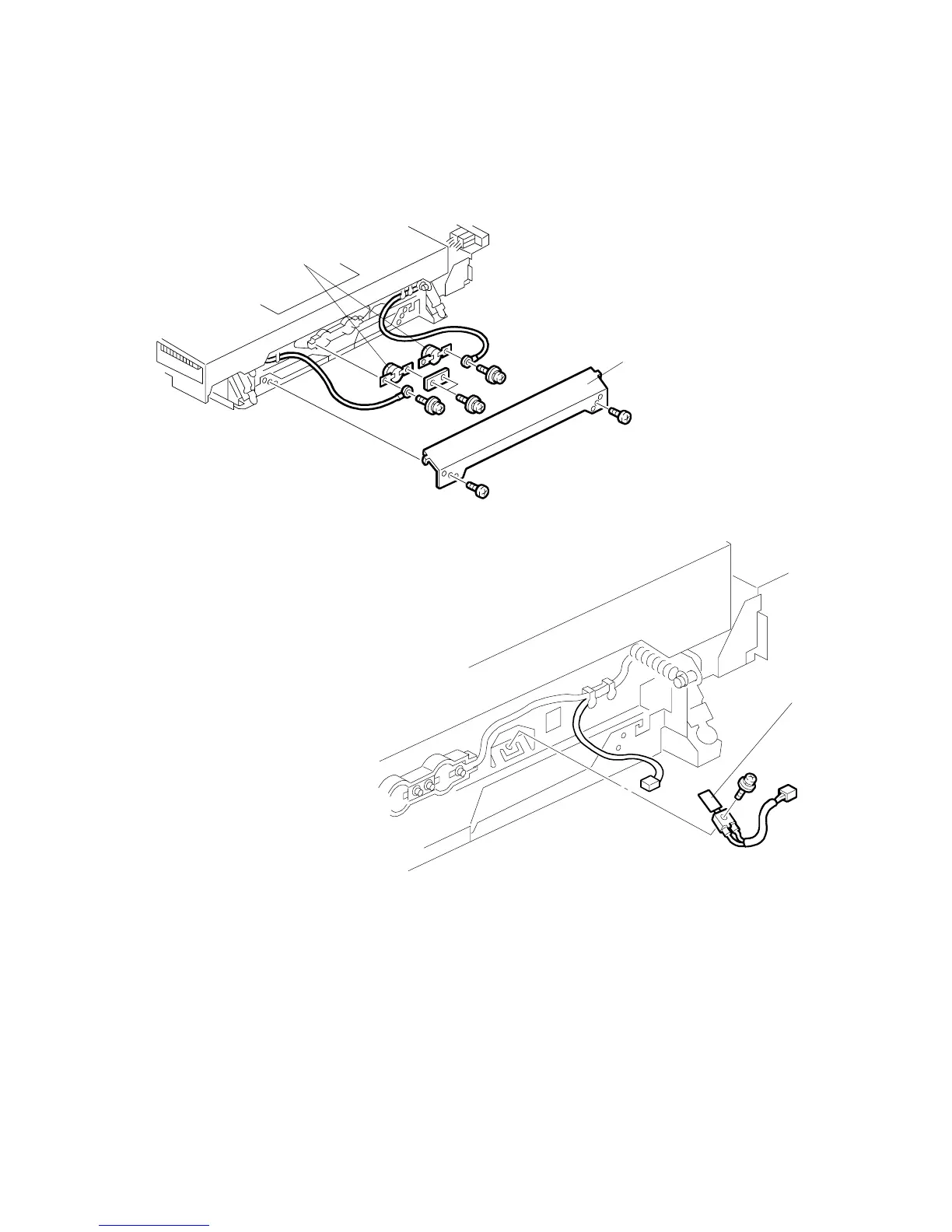

[A]: Lower entrance guide cover ( x2)
[B]: Pressure roller thermostats ( x4)
[C]: Pressure roller thermistor ( x1, x1)
B132R407.WMF
B132R410.WMF
[A]
[B]
[C]
