August, 2006 BOARDS
3-139

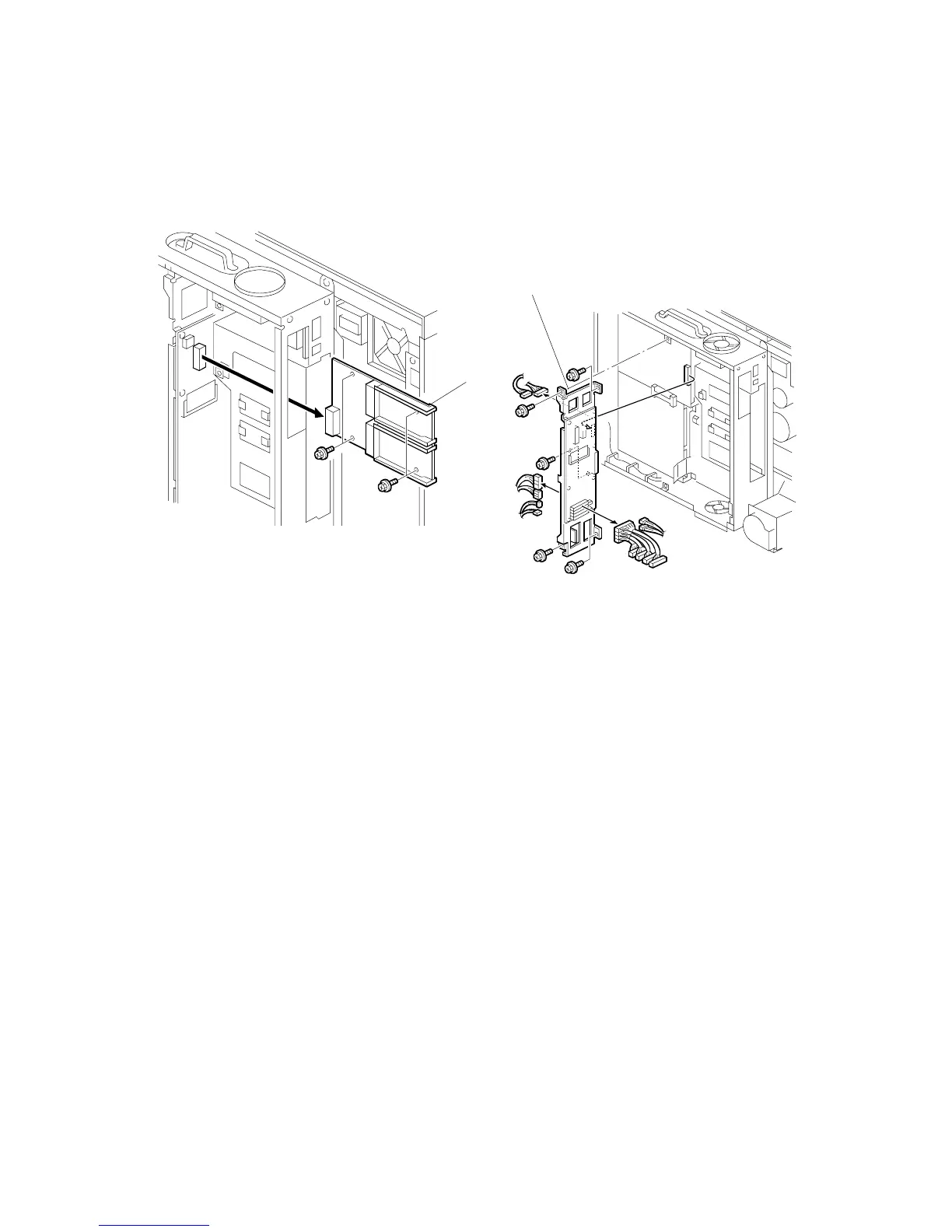

3.14.6 INTERFACE BOARD, MOTHER BOARD
1. Remove the controller unit. (3.14.4)
2. Remove the RAPI EXT board [A] ( x4)
3. Remove the HDD. (3.15)
4. Remove the mother board [B] ( x5, x12)
B132R708.WMF
B132R713.WMF
[A]
[B]
