Toshiba e-STUDIO4500c Service Manual

COMMON REMOVAL PROCEDURES August, 2006
3-8

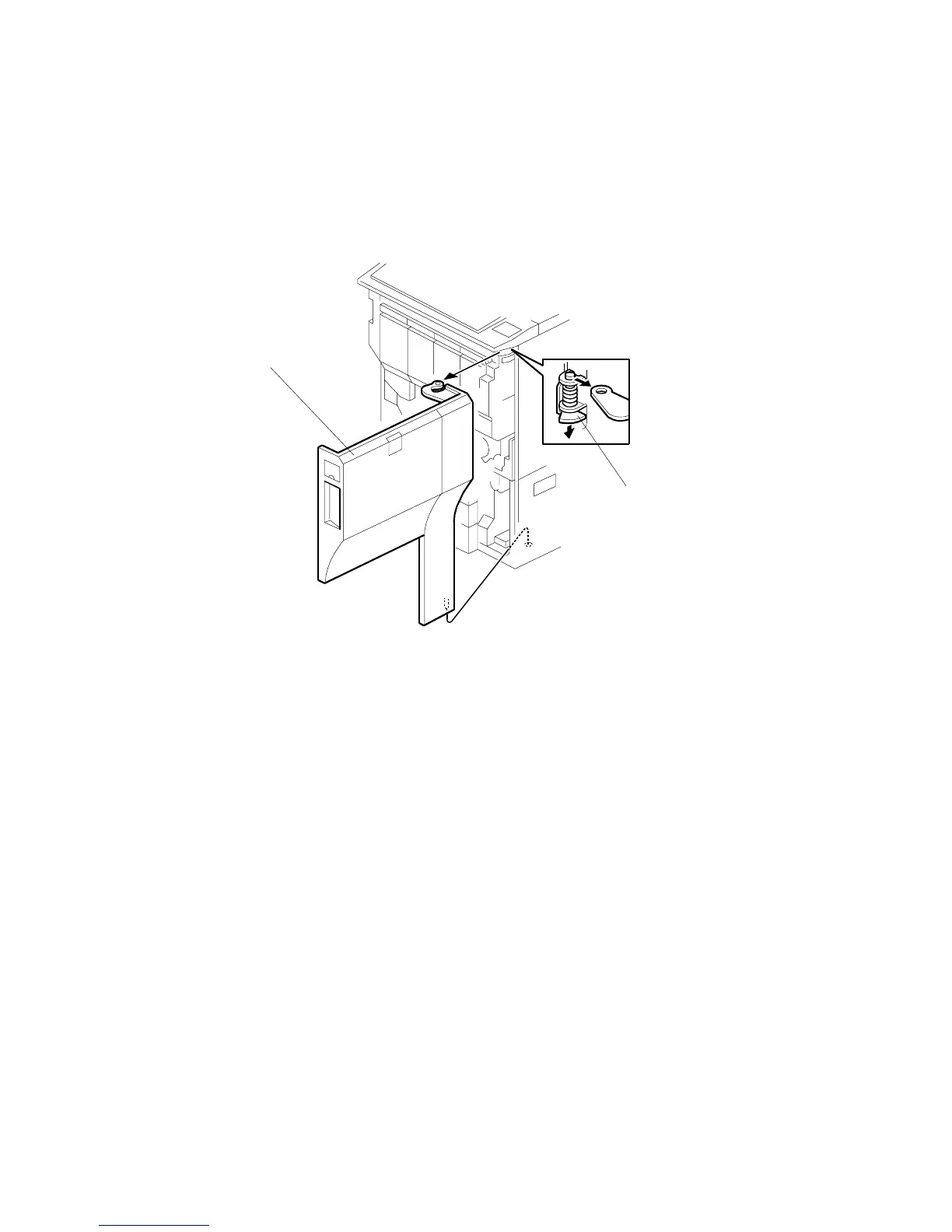

3.2.4 FRONT DOOR
1. Grip the front door [A] with one hand.
2. Press down the hinge bracket [B].
3. Lift the front door slightly to remove it.
Important: If you must replace the front door, make sure that you put the SD cards
from the storage location in the old front door into the storage location in the new
front door. ( 3.2.12)
B132R703.WMF
[A]
[B]
