DETAILS September 2006
B706-34
6.2 PAPER PRE-STACKING
This mechanism improves productivity in staple mode. It is only used when copying
on A4, LT, or B5 (all LEF).
During stapling, the copier has to wait. This mechanism reduces the wait by
holding the first two sheets of a job while the previous job is still being stapled. It
only works during the second and subsequent sets of a multi-set copy job.

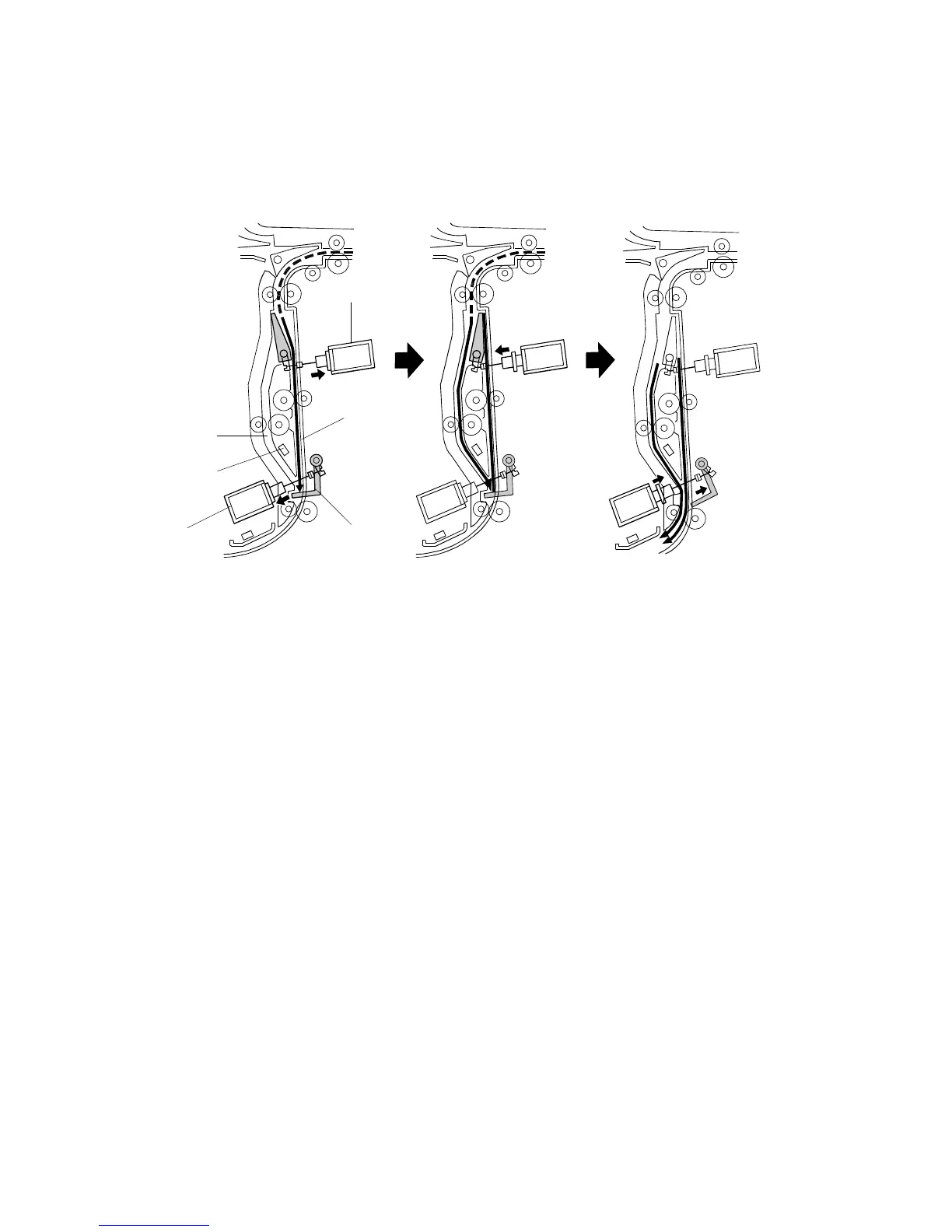

The pre-stack junction gate solenoid [A] turns on 120 mm after the 1st sheet of
paper turns on the entrance sensor, and this directs the sheet to the pre-stack tray
[B]. (This sheet cannot be fed to the stapler yet, because the first set is still being
stapled.) The pre-stack paper stopper solenoid [C] turns on 350 mm after the 1st
sheet turns on the entrance sensor. The pre-stack paper stopper [D] then stops the
paper.
The pre-stack junction gate solenoid turns off 230 mm after the trailing edge of the
1st sheet passes through the entrance sensor, and the 2nd sheet is sent to the
paper guide [E]. The pre-stack paper stopper is released about 40 mm after the
2nd sheet turns on the pre-stack stopper sensor [F], and the two sheets of copy
paper are sent to the stapler tray. All sheets after the 2nd sheet go to the stapler
tray via the paper guide [E].
