Toshiba e-STUDIO4500c Service Manual

August, 2006 ARDF
6-17
Detailed
Descriptions

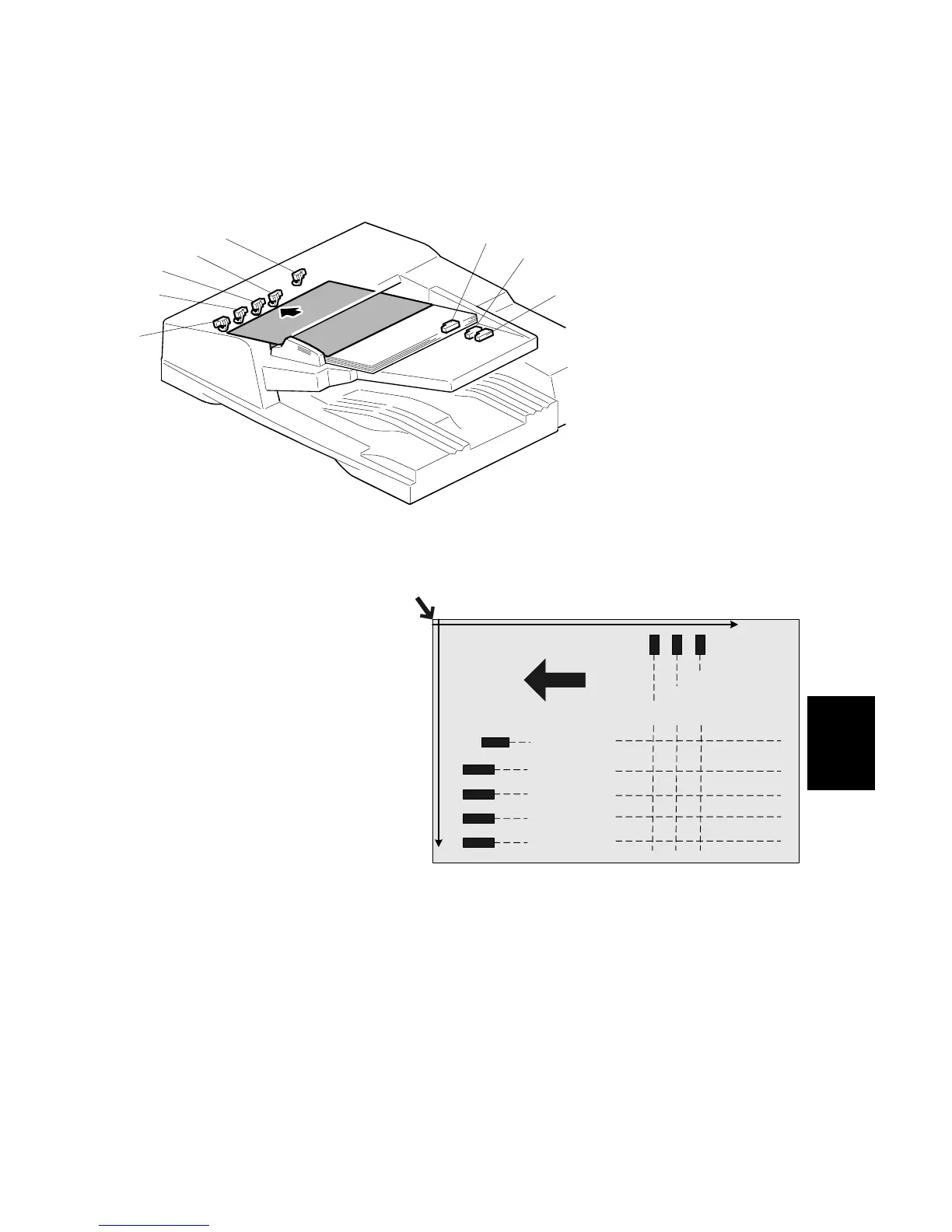

6.4.3 ORIGINAL SIZE DETECTION
The original size is detected by 5 width sensors and 3 length sensors.
When the leading edge of the
paper passes the skew
correction sensor, the CPU
reads the outputs from the
original width sensors.
[A]: Original width sensor 1
[B]: Original width sensor 2
[C]: Original width sensor 3
[D]: Original width sensor 4
[E]: Original width sensor 5
[F]: B5 length sensor
[G]: A4 length sensor
[H]: LG length sensor
B132D110.WMF
138 mm (5.4")
191.5 mm (7.5")
230 mm (9.1")
263.5 mm (10.4")
288 mm (11.3")
1
2
3
4
5
B5 A4 LGL
318 mm (12.5")
291 mm (11.5")
240 mm (9.5")
R
B132D971.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
