Toshiba e-STUDIO4500c - Alignment Brush Roller

REPLACEMENT AND ADJUSTMENT September 2006
B706-8
3.2.3 ALIGNMENT BRUSH ROLLER
1. Open the front door and pull out the staple unit.
2. Remove the rear cover.
3. Remove the main board and all connectors ( x 8).
4. Remove the screw [A] and tension spring [B] for the tension bracket [C], and
release the tension of the timing belt.
5. Remove the pulley [D] and bushing [E] ( x 2).
6. Remove the inner cover [F] ( x 1).
7. Open the guide [G], then remove the alignment brush roller assembly [H] ( x
1).
8. Remove the alignment brush roller [I] ( x 1, bushing x 1 front/back).

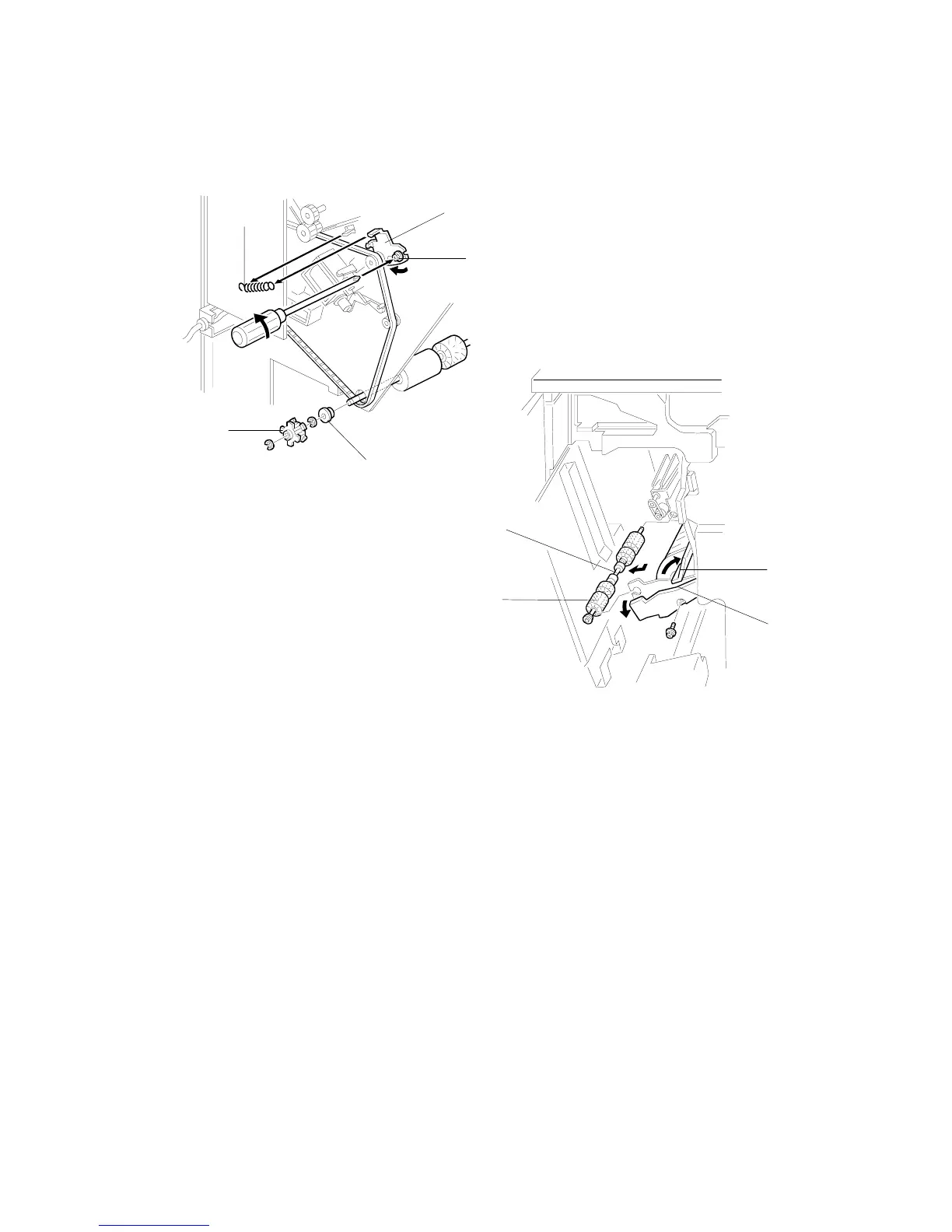

B478R507.WMF
B478R508.WMF
[B]
[C]
[E]
[D]
[F]
[G]
[A]
[H]
[I]
06/09
