Toshiba e-STUDIO4500c Service Manual

PAPER TRANSFER UNIT August, 2006
3-66
3.7.3 PAPER TRANSFER UNIT
• Pull out the drawer unit. (3.2.9)
Remove:
[A]: Paper transport unit cover ( x2)
[B]: Timing belt, gear ( x1)
NOTE: Do not loosen or remove the paint-locked screws.
[C]: Press the release forward
[D]: Raise the handle to the vertical position.

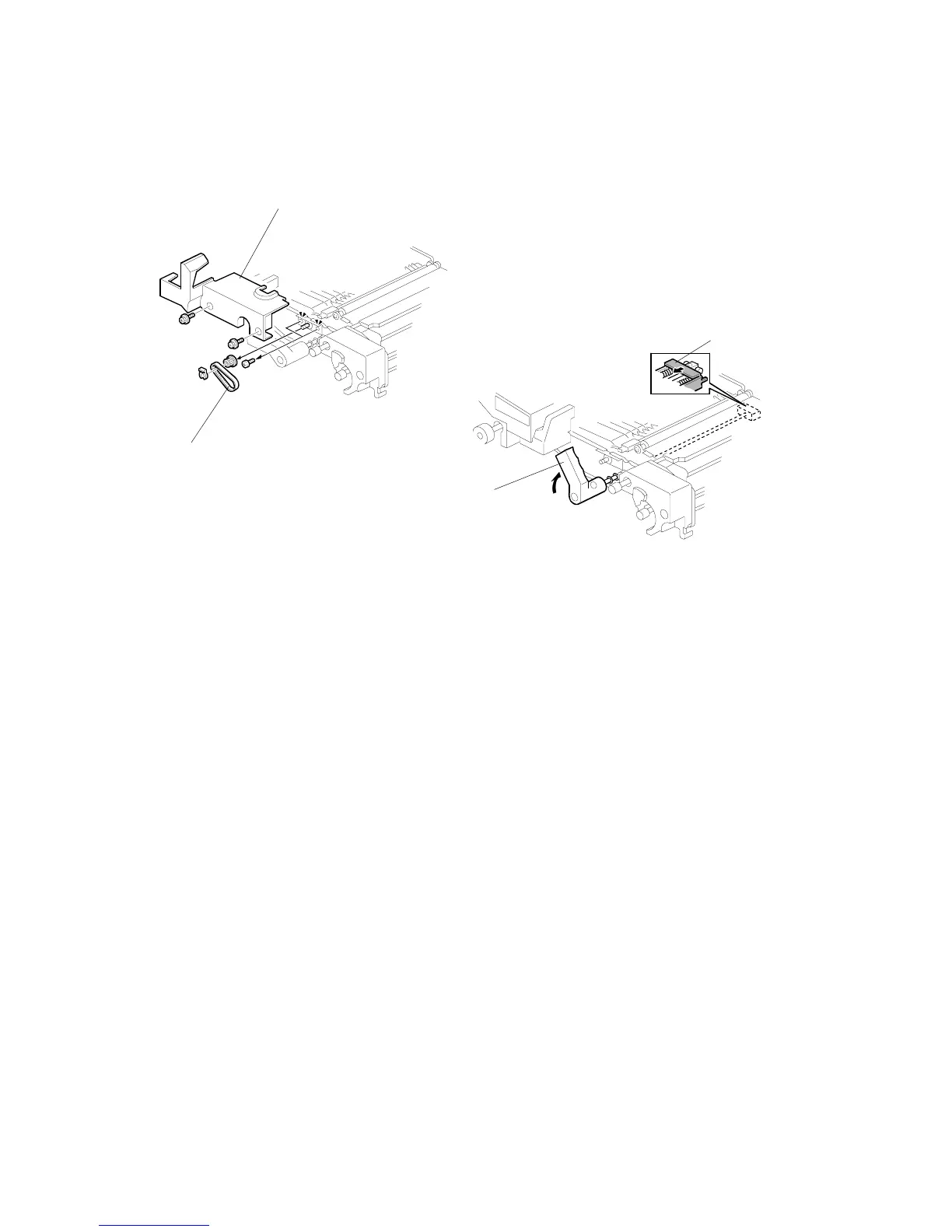

B132R302.WMF
B132R302A.WMF
[A]
[B]
[C]
[D]
