BYPASS UNIT August, 2006
3-132
3.13.5 BYPASS FEED CLUTCH
Remove:
• Bypass unit (3.13.3)

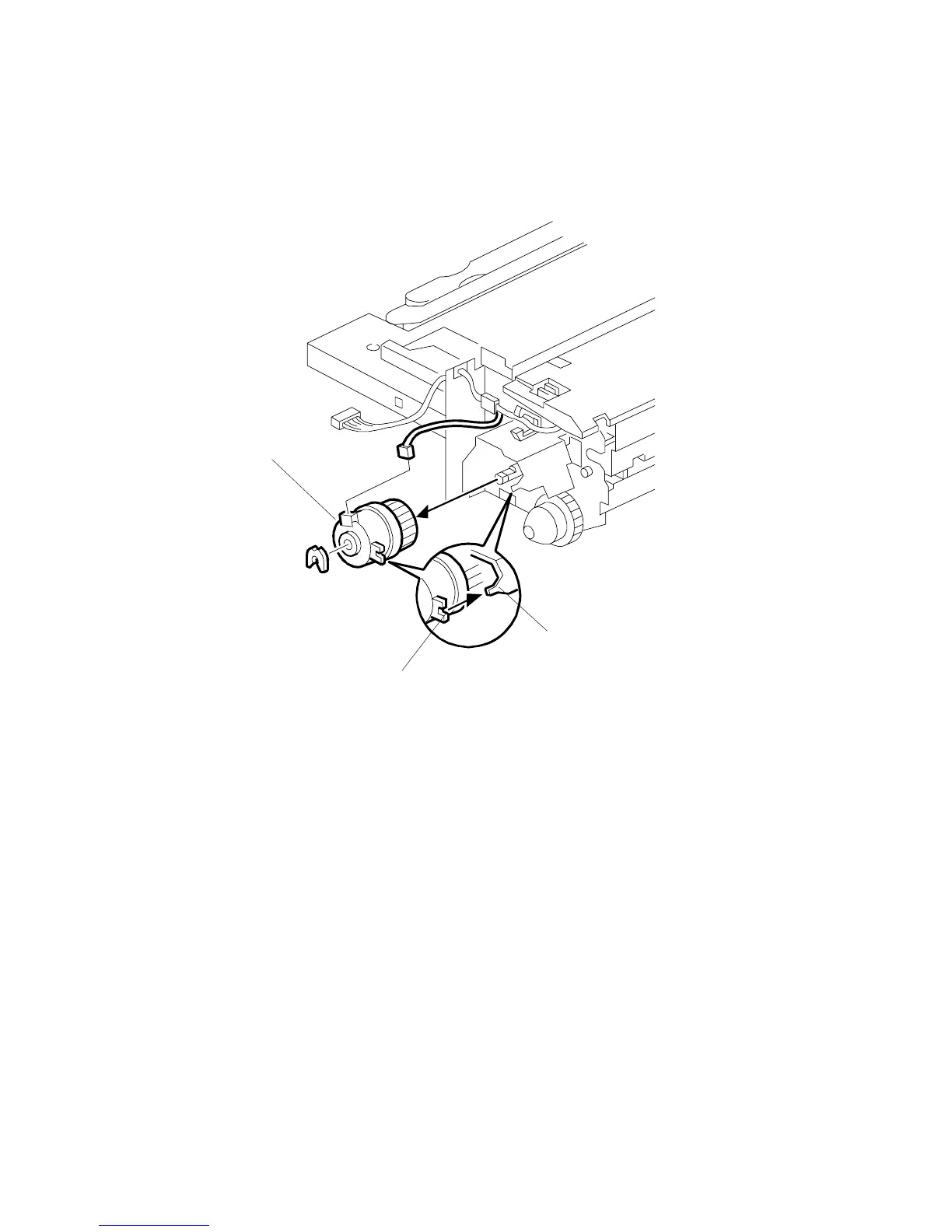

[A]: Bypass feed clutch ( x1, x1)
Reinstallation
• Make sure the arm [B] fits correctly into the notch bracket [C] of the clutch.
B132R614.WMF
[A]
[B]
[C]
