Toshiba e-STUDIO4500c Service Manual

MOTOR REPLACEMENT September 2006
B704-6
1.6 MOTOR REPLACEMENT
1.6.1 VERTICAL TRANSPORT MOTOR
Open the top cover.
Rear middle cover ( x 1) ( 1.1)
[A]: Motor bracket ( x 1, harness x 1,  x 2, timing belt x 1)
[B]: Motor ( x 2)
1.6.2 BOTTOM PLATE LIFT MOTOR
Rear upper cover ( 1.1)
[A]: Bottom plate lift motor (harness x 2,  x 1,  x 2)

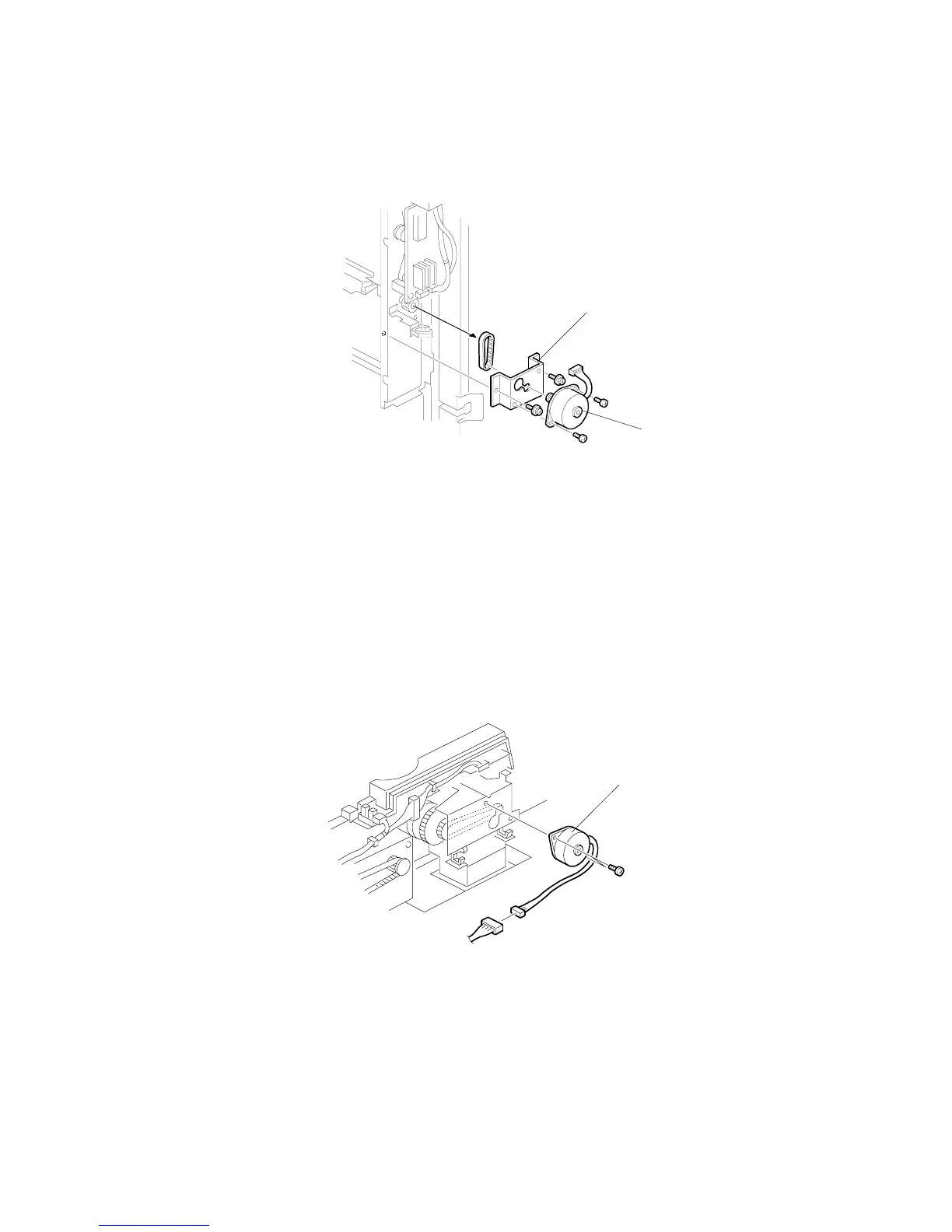

B470R102.WMF
B470R104.WMF
[A]
[B]
[A]
