Toshiba e-STUDIO4500c Service Manual

ARDF August, 2006
3-158

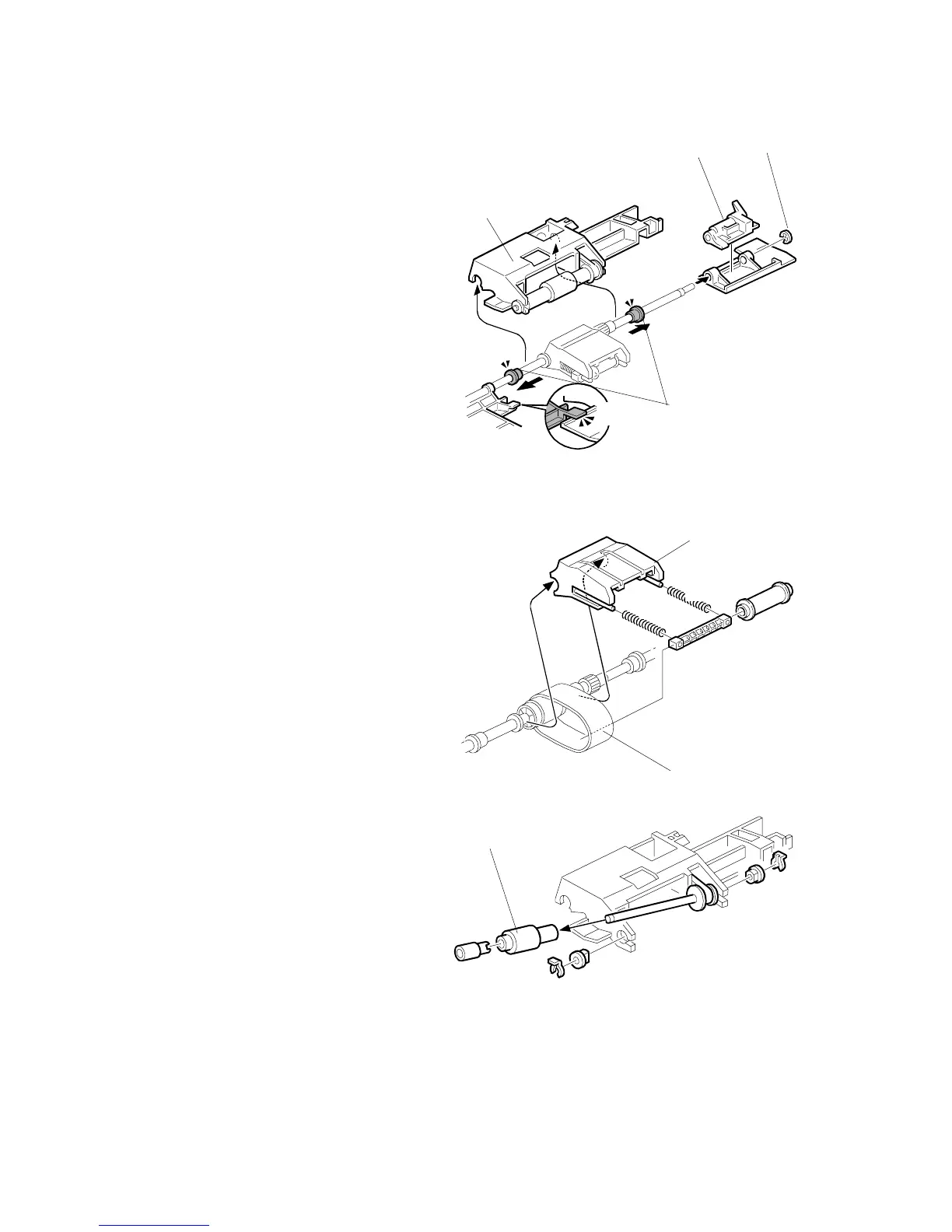

3.18.3 FEED BELT, PICK-UP ROLLER
Remove:
• Original Feed unit (3.18.2)
[A]: E-ring
[B]: Cover
[C]: Slide bushings out
Reassembly
Make sure that the tab  on the front
guide plate is above the pick-up
roller unit [D].
[E]: Feed belt holder
[F]: Feed belt
NOTE: Remove slowly. Do not let
the springs ,  fall.
[G]: ARDF pick-up roller
B132R106.WMF
B132R107.WMF
B132R106A.WMF
[A]
[B]
[C]
[E]
[F]



[G]
[D]
