ARDF August, 2006
6-26
6.4.10 DUPLEX SCANNING

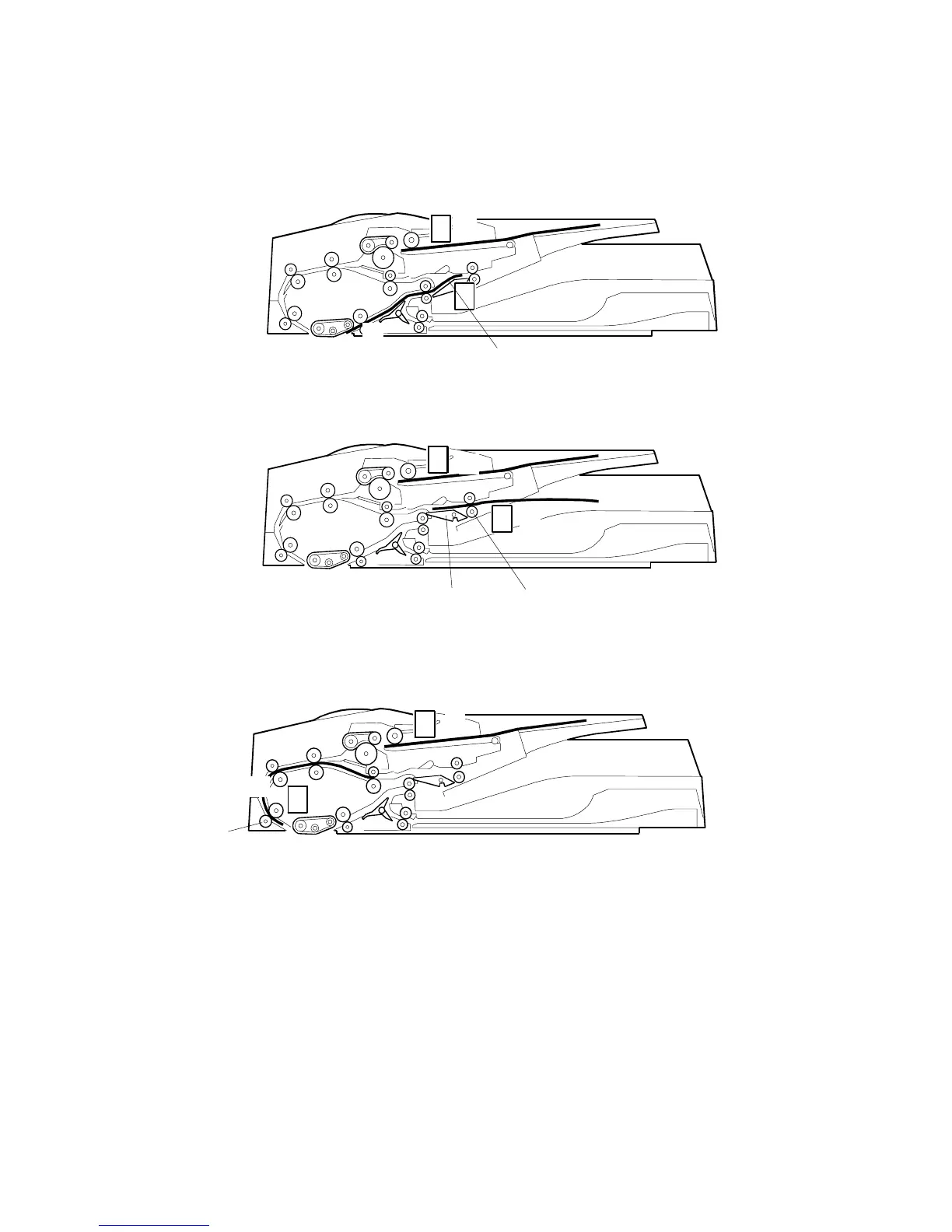

1. Side 1 of original is scanned, original waits. Upper junction gate [A] opens
and sends to the upper inverter rollers.
2. Original feeds past the upper inverter rollers [B] and stops. Upper inverter
junction gate [C] closes. The upper inverter rollers reverse and feed the original
into the feed path.
3. Original feeds to rollers [D], where skew is corrected. (6.4.7) Skew is
corrected only for small paper sizes (B6, A5, HLT). Other sizes can be selected
for this function with SP6020.
