BOARDS August, 2006
3-142
3.14.9 AC DRIVE BOARD
Remove left lower cover. (3.2.3)

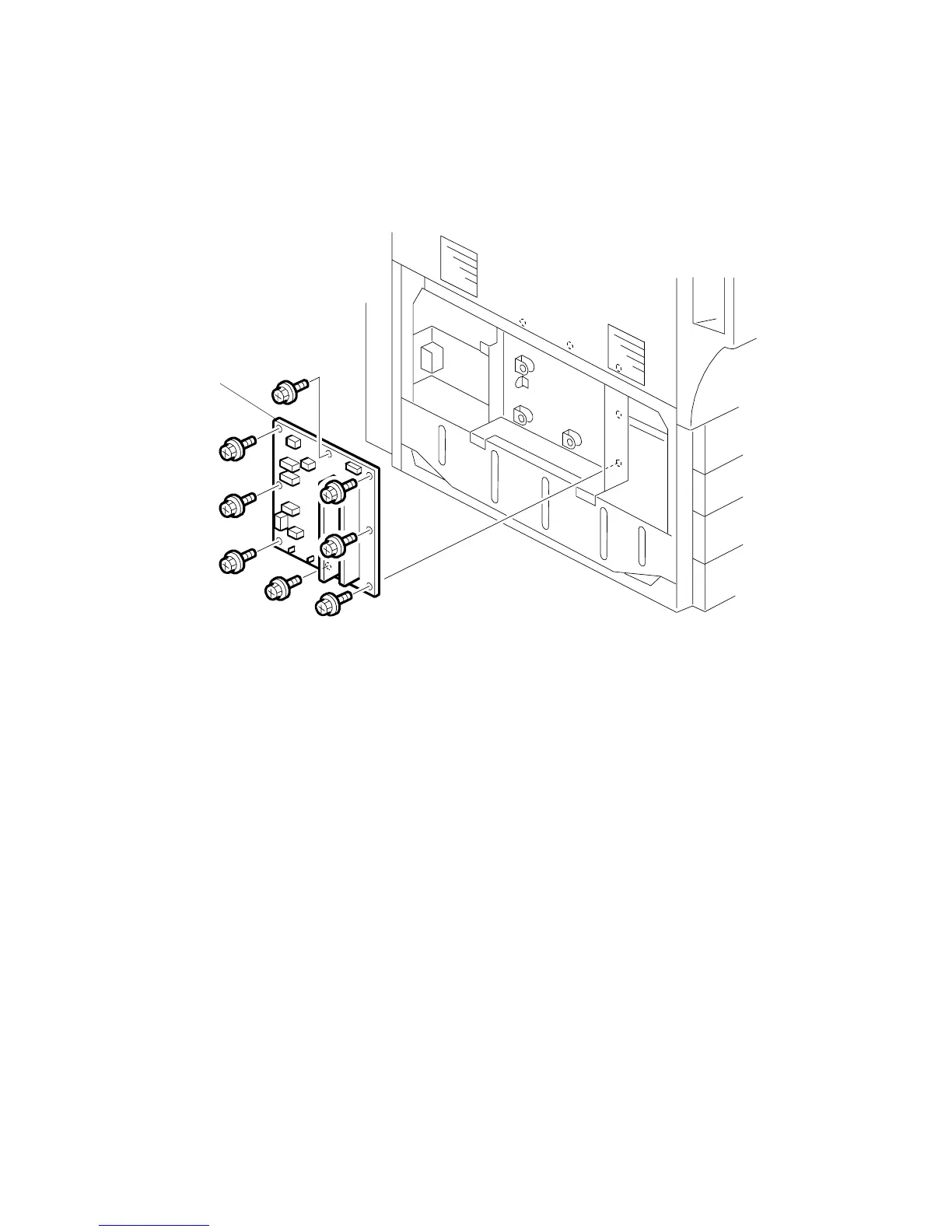

[A]: AC drive board ( x8, x6)
B132R727.WMF
[A]
