August, 2006 BOARDS
3-141
3.14.8 PSU
• Remove the rear covers (3.2.6)
Remove:
• HVPS, PFC board assembly (3.14.7)

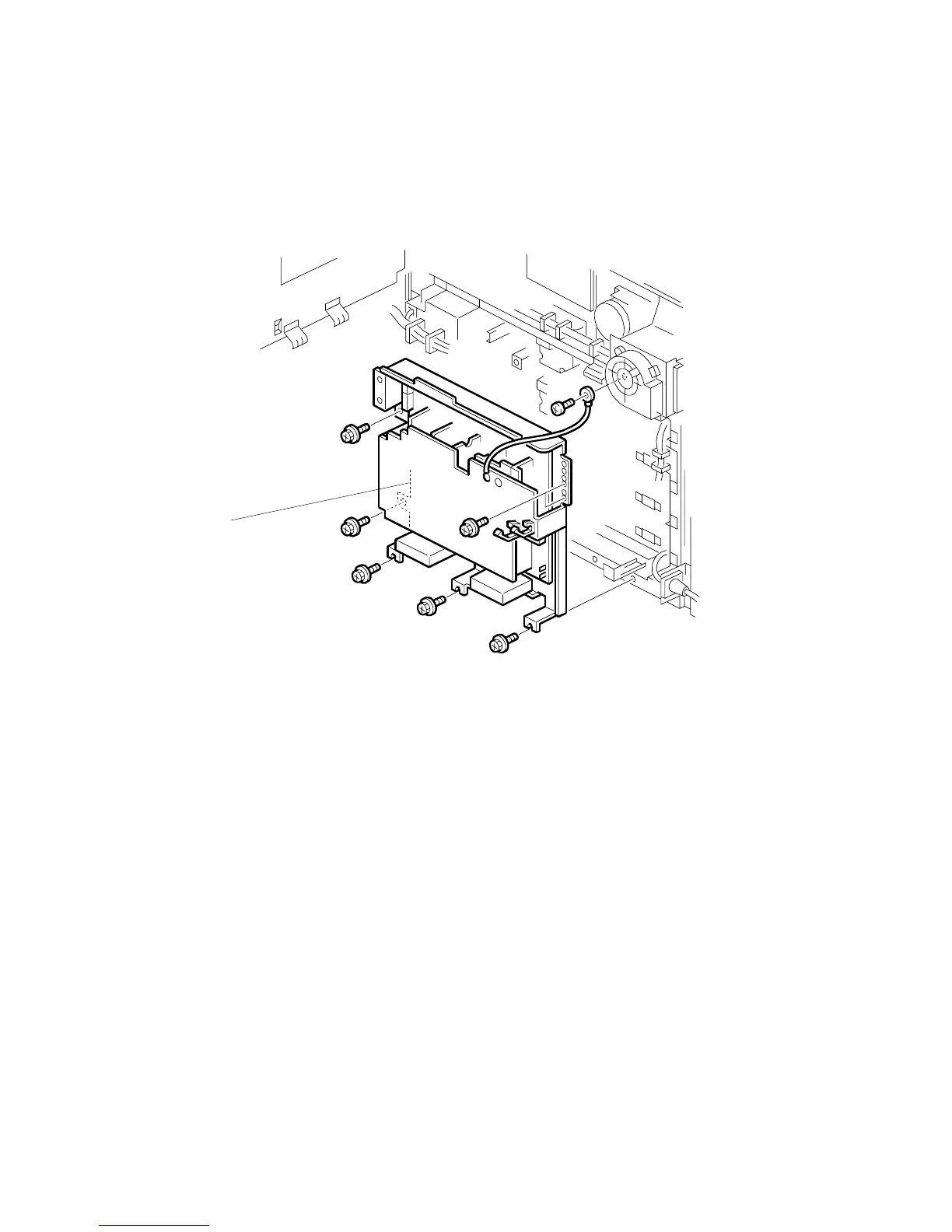

[A]: PSU ( x7, x8)
B132R722.WMF
[A]
