Toshiba e-STUDIO4500c - Booklet Stapling and Folding Mechanisms

BOOKLET STAPLING (B700 ONLY) August 2006
B700-56

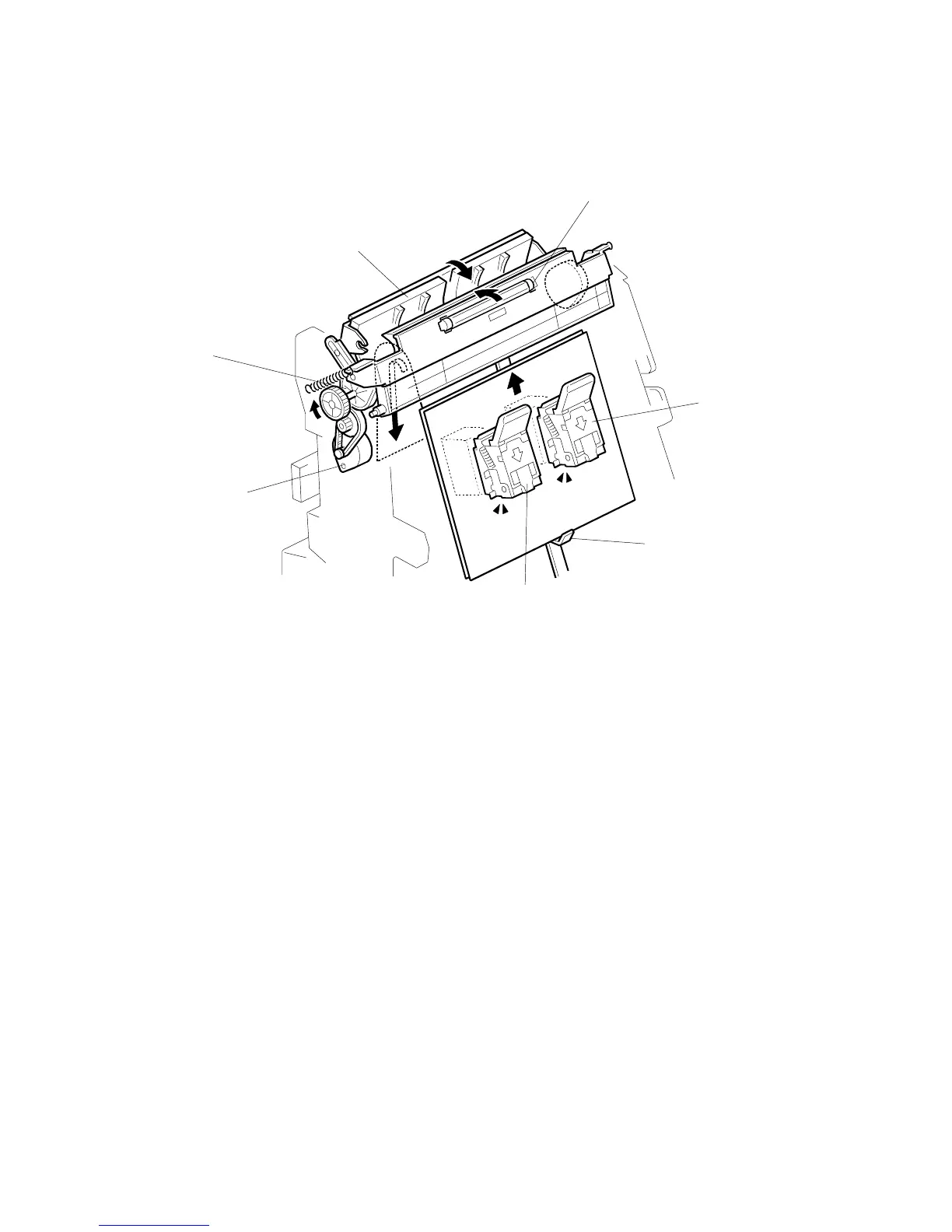

Booklet Stapling and Folding Mechanisms
Booklet Stapler
[A]: Feed Out Belt Pawl. Raises the stack to stapling position.
[B]: Booklet Stapler – Rear
[C]: Booklet Stapler – Front
Stack Junction Gate
[D]: Stack Junction Gate Motor. Drives a timing belt and stack junction gate cam.
[E]: Stack Junction Gate Cam. Opens and closes the stack junction gate.
[F]: Stack Junction Gate. The stack junction gate motor and stack junction gate
cam close the stack junction gate. The feed out belt pawl raises the stapled
stack and sends it over the top and down to the fold unit.
[G]: Leading Edge Pressure Roller. Presses down on the leading edge of the stack
after booklet stapling.
B700D104.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
