PAPER FEED (TRAYS 2, 3) August, 2006
3-126

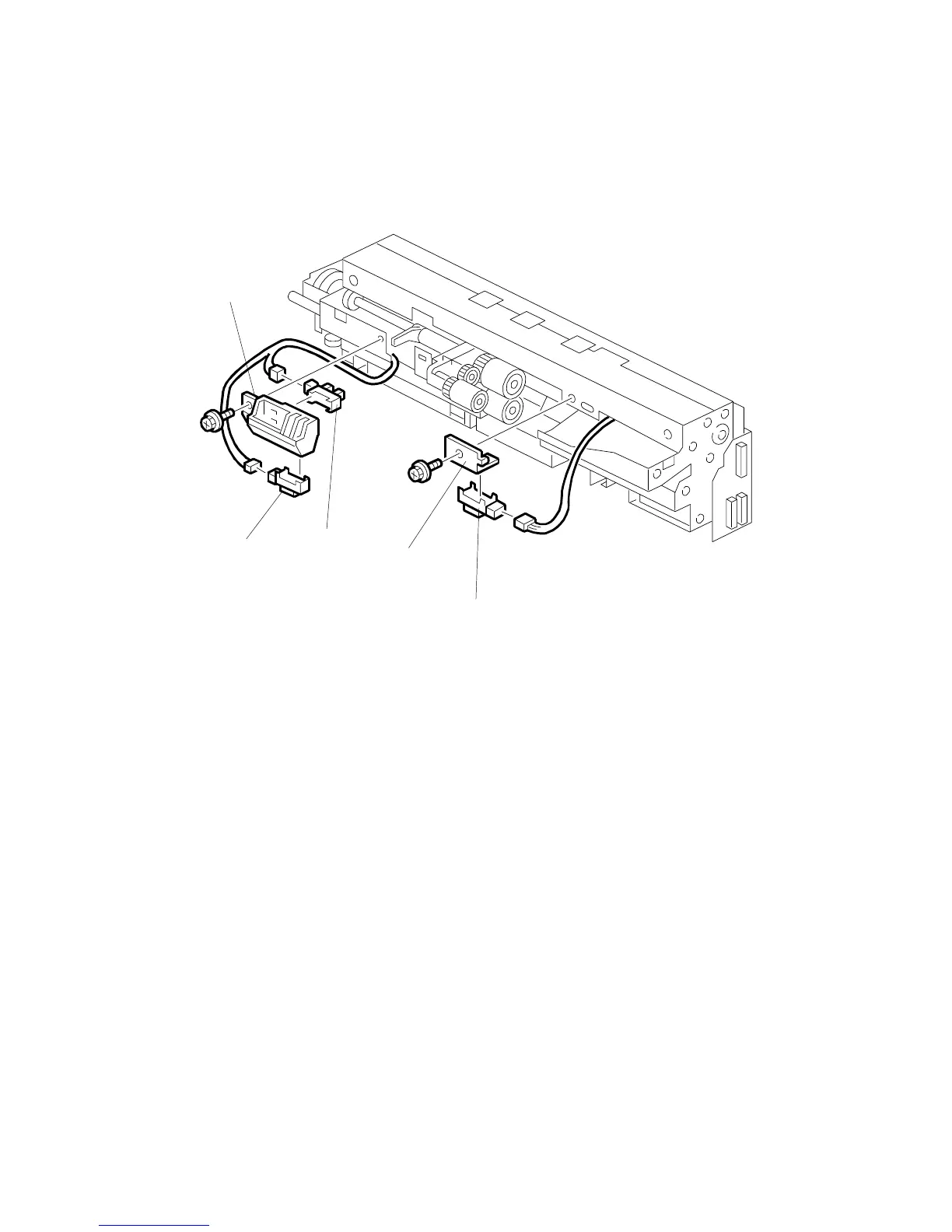

3.12.4 PAPER END, TRAY LIFT, PAPER FEED SENSORS
Remove:
Feed unit (3.12.2)
[A]: Sensor bracket ( x1)
[B]: Paper end sensor ( x1)
[C]: Tray lift sensor ( x1)
[D]: Sensor bracket ( x1)
[E]: Paper feed sensor ( x1)
B132R606.WMF
[A]
[B]
[C]
[D]
[E]
