September 2006 MOTOR REPLACEMENT

B704-7

Peripherals

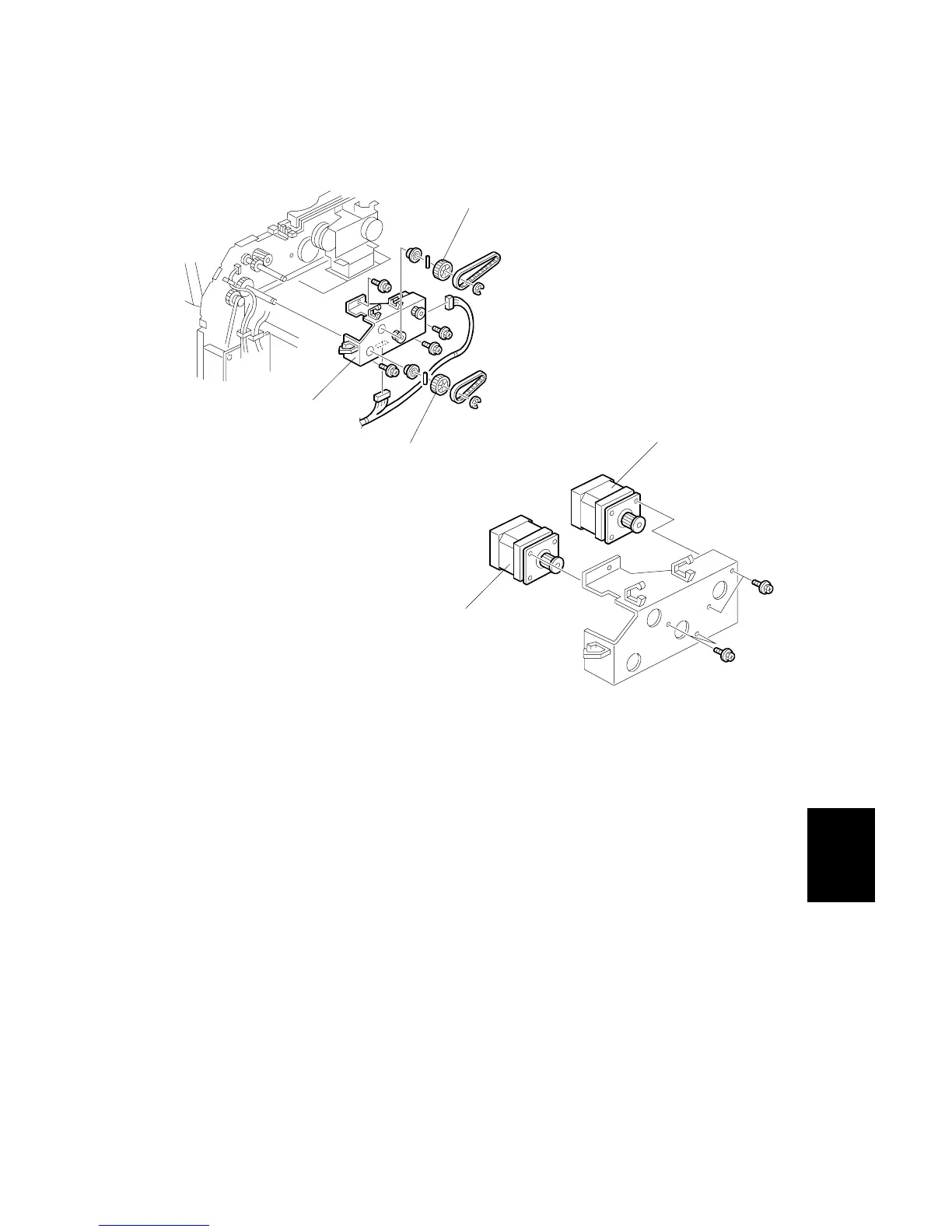

1.6.3 FEED MOTOR, TRANSPORT MOTOR

Rear upper cover ( 1.1)

NOTE: When removing the feed gear and transport gear, hold one hand under the

gear to catch the pin as it falls from the hole in the shaft.

[A]: Feed gear ( x 1, pin x 1, timing belt x 1, bushing x 1)

[B]: Transport gear ( x 1, pin x 1, timing belt x 1, bushing x 1)

[C]: Motor bracket (harness x 5,  x 4)

[D]: Feed motor ( x 1,  x 2)

[E]: Transport motor ( x 1,  x 2)

B470R105.WMF

B470R103.WMF

[A]

[B]

[C]

[D]

[E]

06/09

Toshiba e-STUDIO4500c Service Manual
