Toshiba e-STUDIO4500c Service Manual

August, 2006 IMAGE TRANSFER UNIT
3-81
3.8.2 ITB CLEANING BLADE, DUST COLLECTION UNIT
Remove:
• Image transfer unit (3.2.8)
• Belt cleaning unit (3.8.1)

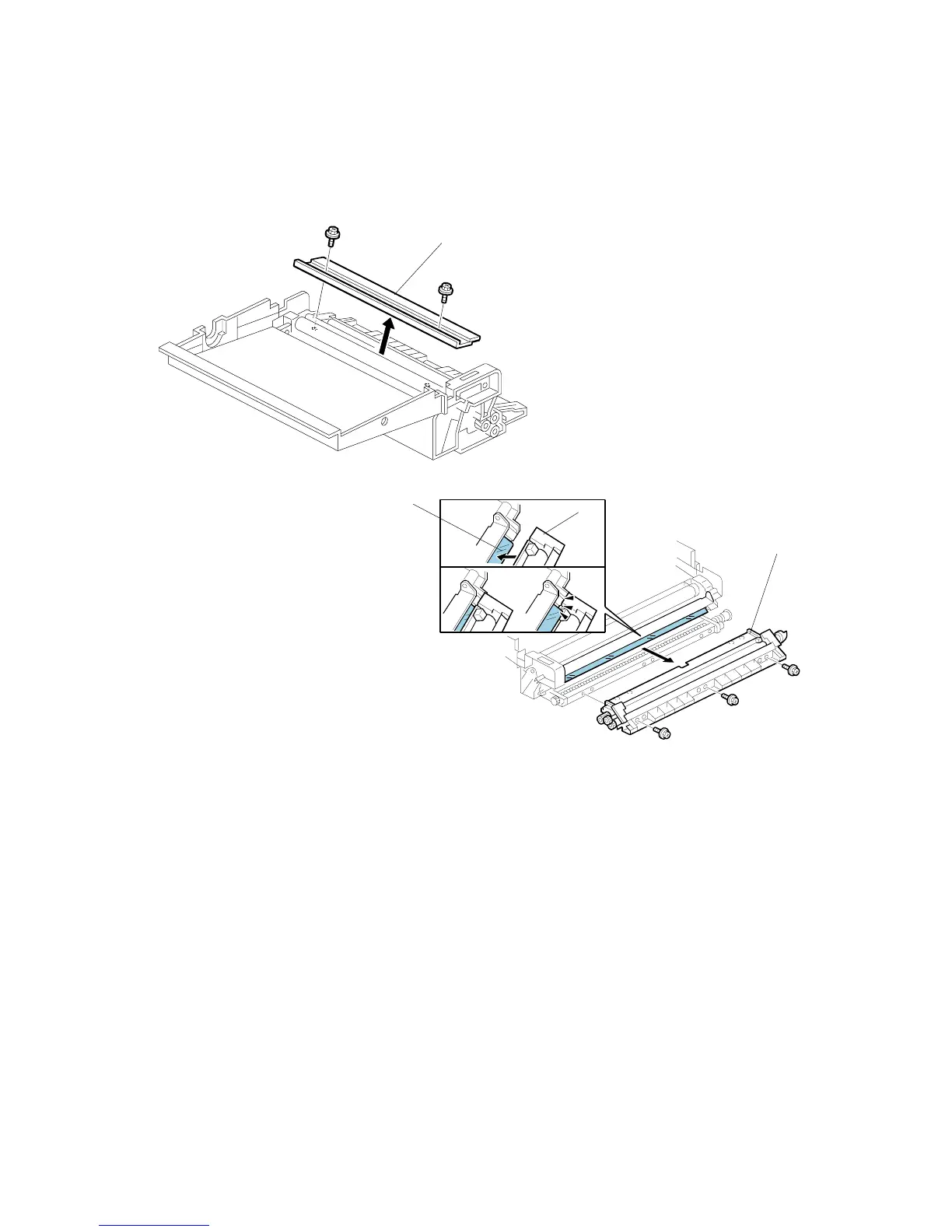

[A]: ITB cleaning blade ( x2)
[B]: Dust collection unit ( x3)
Reinstallation
• After reinstallation of the dust collection unit, confirm that the seal [C] is covered
by the bracket [D].
• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).
B132R311.WMF
OK NG
B132R312A.WMF
[A]
[B]
[C]
[D]
