Toshiba e-STUDIO4500c Service Manual

PHOTOCONDUCTOR UNITS (PCU) August, 2006
6-62

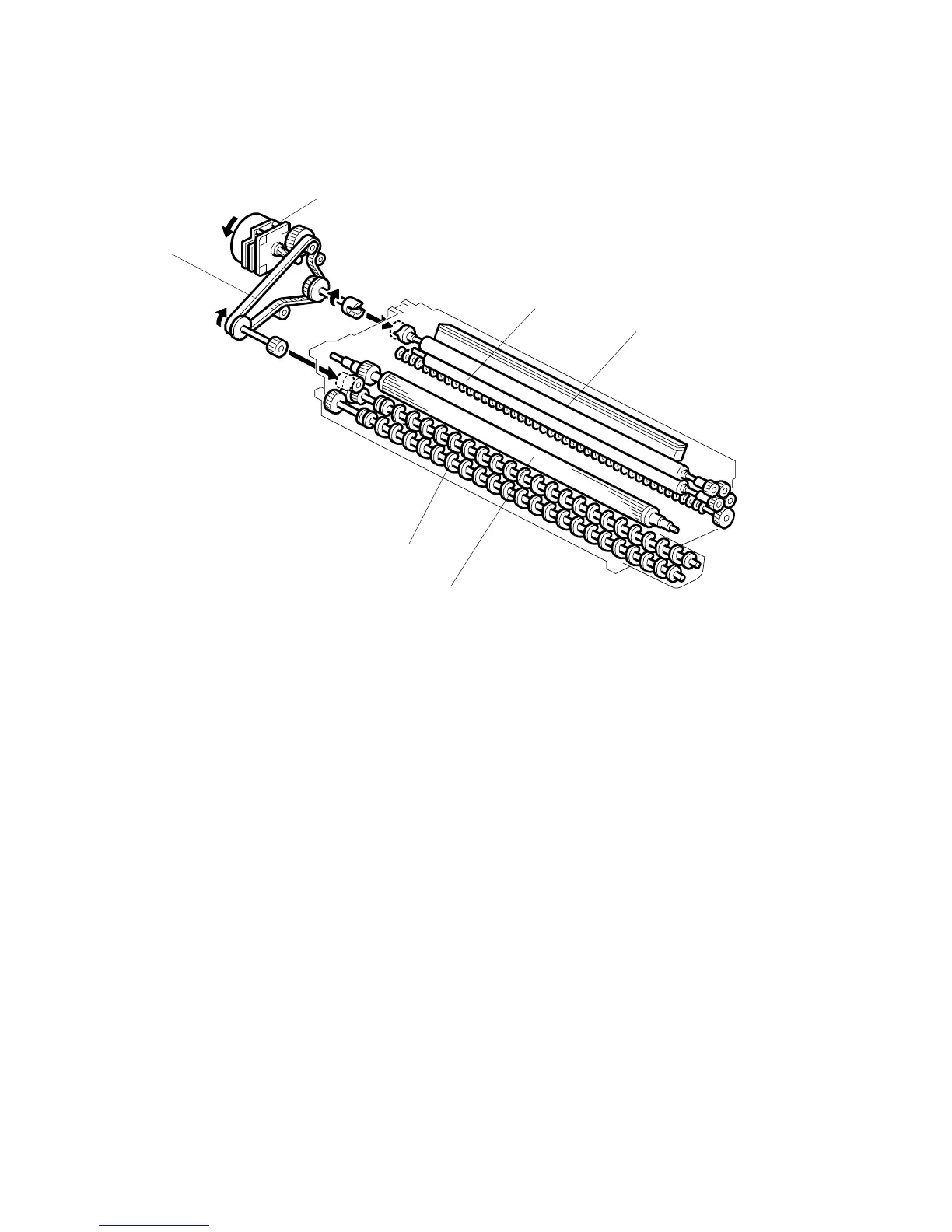

Development, PCU Drive
[A]: PCU Motor
A motor and timing belt behind each PCU drives all the rollers in the PCU.
(The drum is driven by the drum motor.)
[B]: Timing Belt
[C]: Developer Augers
[D]: Development Roller
[E]: Cleaning Brush Roller
[F]: Lubricant Brush Roller
B132D213.WMF
[A]
[B]
[C]
[D]
[E]
[F]
