Developer Cartridge Installation
Important
• The OPC drum is exposed on the bottom of the PCU.
• Do not put your hand under the PCU when you hold the PCU.
• Always use the PCU stand. Do not put the PCU on other surfaces.

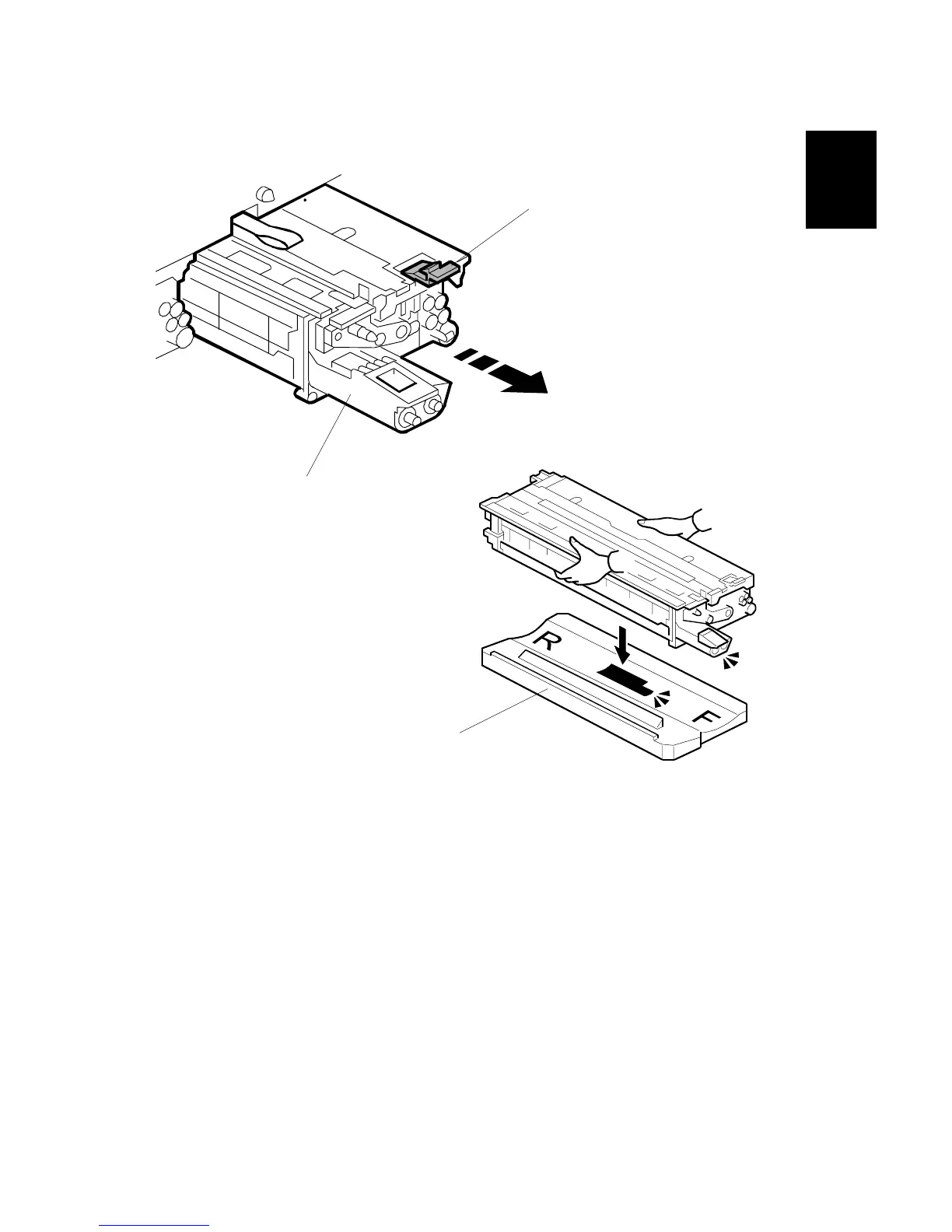

1. Push down the tab [A] above the Yellow PCU.
2. Hold the Yellow PCU [B] by its sides, and pull it out of the machine.
3. Set the PCU on the PCU stand [C]. (In the diagram, F is ‘front’, R is ‘rear’.)
4. Put a piece of clean paper on top of the PCU to protect the drum from light.
B132I903.WMF
F
R
B132R214.WMF
[A]
