Toshiba e-STUDIO4500c - Duplex Tray Feed

DUPLEX UNIT August 2006
6-146

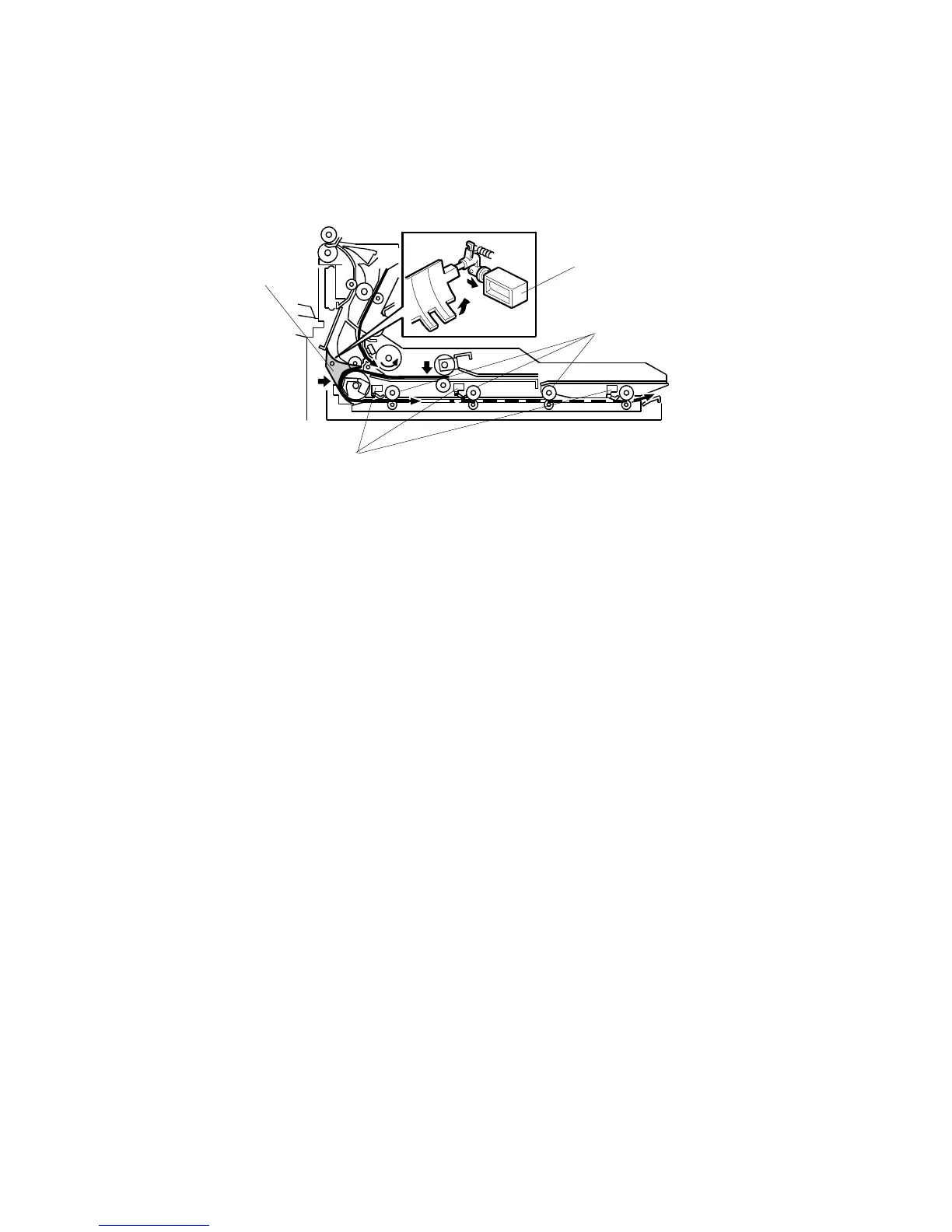

6.16.4 DUPLEX TRAY FEED
[A]: Junction gate solenoid
[B]: Duplex junction gate
[C]: Transport rollers 1, 2, 3, 4
[D]: Duplex transport sensors 1, 2, 3
After inversion:
• If duplex mode is not selected, the duplex junction gate solenoid [A] does not
switch on to open the duplex junction gate [B]. The paper goes to the output tray
or finisher face down.
• If duplex mode is selected, after the paper leaves the inverter, the solenoid [A]
switches on and opens the junction gate [B]. The paper goes down to the duplex
tray.
B132D958.WMF
[A]
[B]
[C]
[D]
