August 2006 PAPER FEED
6-123
Detailed
Descriptions
Bypass Tray Paper End Detection

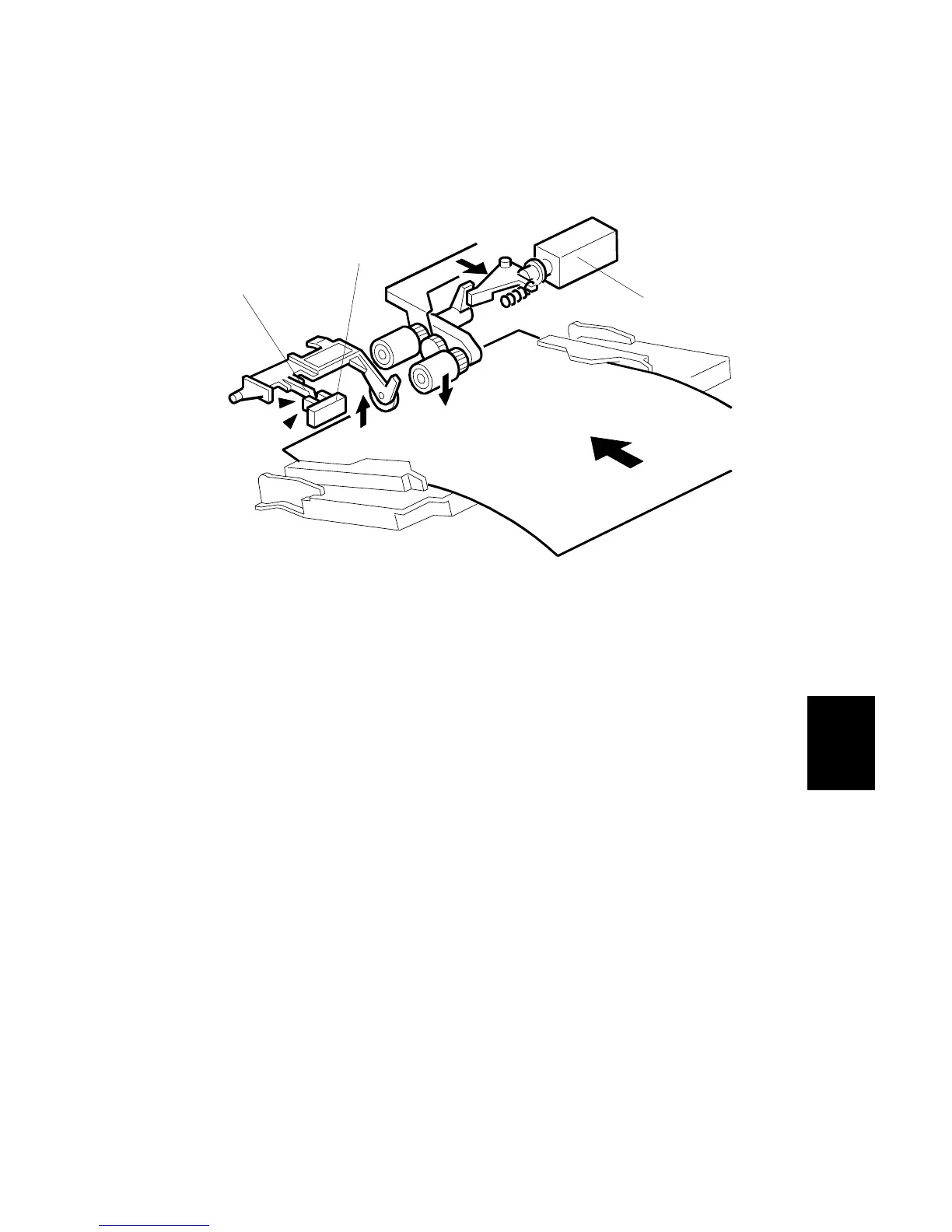

When the paper runs out, the paper end feeler [A] drops through the cutout in the
bypass paper end sensor [B].
[C]: Pickup solenoid
B132D604.WMF
[A]
[B]
[C]
