Toshiba e-STUDIO4500c Service Manual

August 2006 UPPER TRAY OUTPUT
B700-61
Peripherals
2.10.2 FEED OUT STACKING

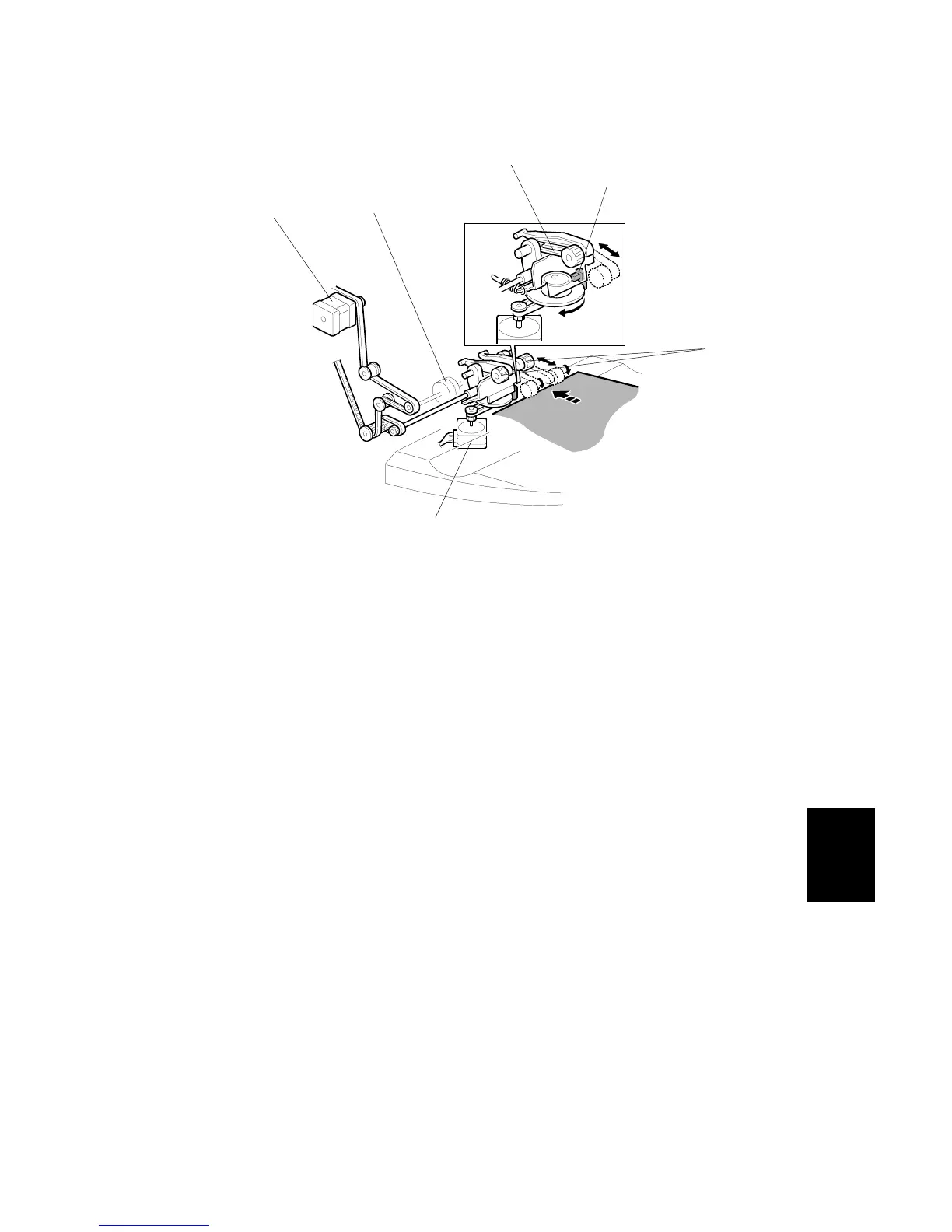

Upper/proof exit motor [A] drives feed roller [B] and stacking sponge roller [C].
Stacking sponge roller motor [D] moves the sponge roller forward and back with
link [E].
The position of the stacking sponge roller [C] is controlled by the stacking sponge
roller motor which is switched on and off by the stacking roller HP sensor [F].
B700D359.WMF
[A]
[B]
[C]
[D]
[E]
[F]
