Toshiba e-STUDIO4500c Service Manual

September 2006 OVERVIEW
B473-7
Peripherals
2. DETAILS
2.1 OVERVIEW

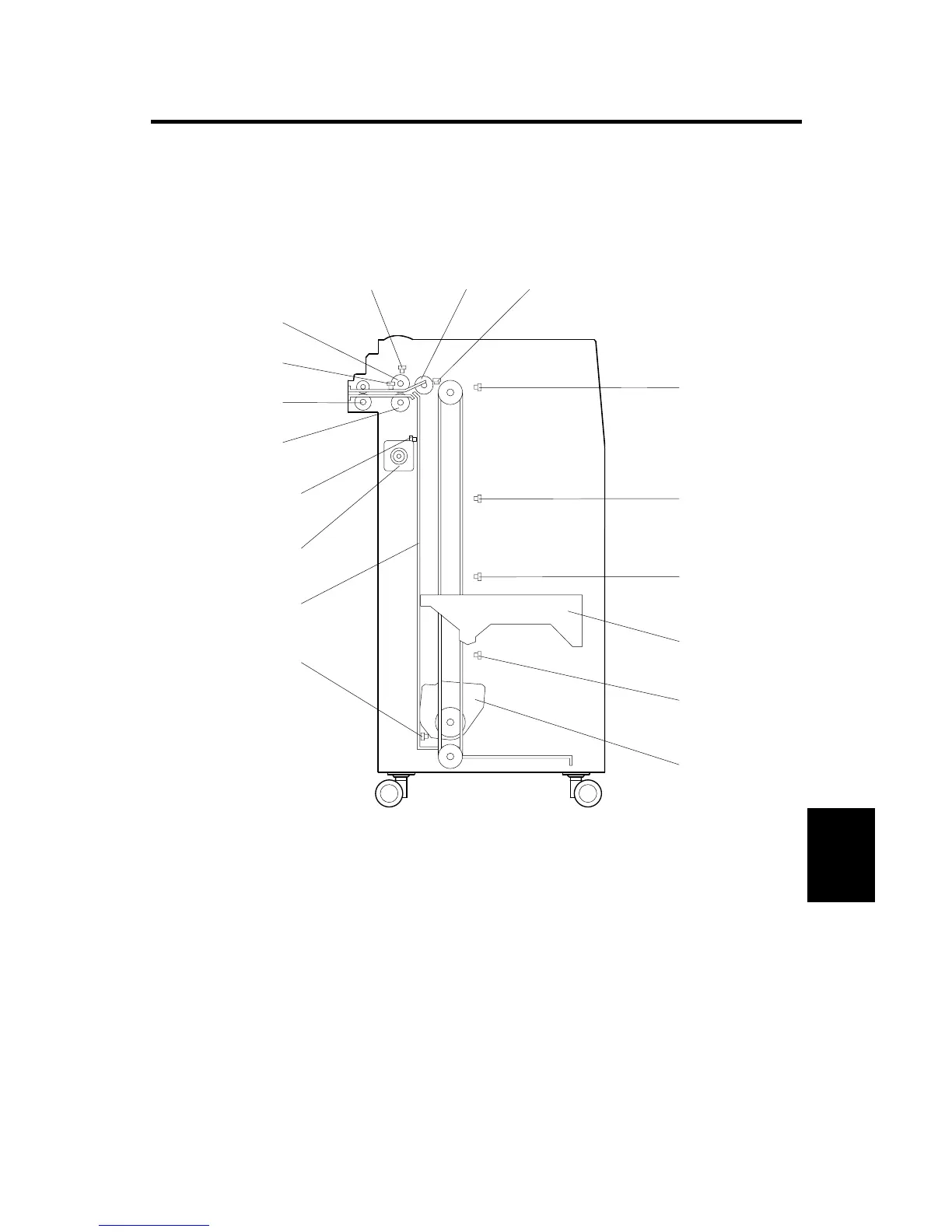

2.1.1 LCT MAIN COMPONENTS
1. Separation Roller
2. Transport Roller
3. Feed Sensor
4. Feed Roller
5. Lift Sensor
6. Pick-up Roller
7. Paper End Sensor
8. Paper Near End Sensor
9. Paper Height Sensor 1
10. Paper Height Sensor 2
11. Paper Tray
12. Paper Height Sensor 3
13. Paper Tray Motor
14. Low Limit Sensor
15. Tray Drive Belt
16. Feed Motor
17. Stack Sensor
B473D001.WMF
2
3
4
5
6
7
8
9
10
11
12
13
14
17
1
16
15
